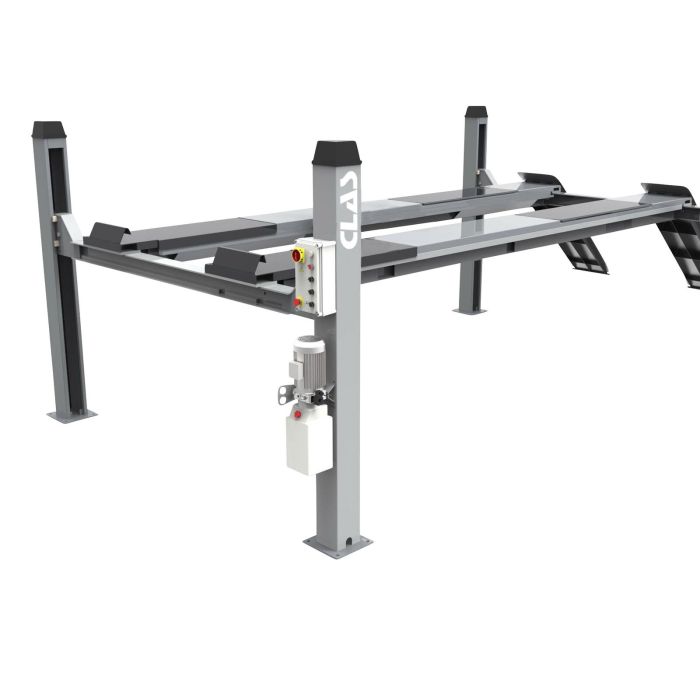

4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.5T
SKU
PE 4001T
Product values
View all features
Suitable for mechanical work, light commercial vehicles, motorhomes, construction equipment, ideally designed for geometry and roadworthiness testing, with front swashplate slots and optional skid plate, equipped with rear skid plate.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 4101T - 4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.T
Characteristics
| Item name | 4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.5T |
|---|---|
| Bar code | 3701555307077 |
| Introduction | Suitable for mechanical work, light commercial vehicles, motorhomes, construction equipment, ideally designed for geometry and roadworthiness testing, with front swashplate slots and optional skid plate, equipped with rear skid plate. |
| Text |
Electro-hydraulic post lift. Working comfort: One-piece access ramps, quick and easy vehicle positioning, see ramp option for low-clearance vehicles, enables rapid repair or inspection, 5.19 m long paths. Equipped with guides for optional lifting crossbar. |
| Product highlight | Special geometry |
| Specifications |
Specifications : - lifting height: 246-1896mm - lifting time: +/- 45s - lowering time: +/- 45s - track width/length: 490-5190mm - adjustable distance between runways: 800-1100mm - air supply 8bar - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - maximum safety: single-cylinder lifting, 4-cable drive, pneumatic release of safety catches, safety system in the event of cable breakage, emergency lowering system in the event of power failure, intermediate stop and audible signal - made in Europe - Epoxy paint |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 1,750 kg |
| Maximum load (T) | 5.50 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 4001T-1 - 4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.5T PACK. 1/3 1 x PE 4001T-2 - 4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.5T PACK. 2/3 1 x PE 4001T-3 - 4 COLUMNS POST LIFT FLAT OSCILLATION TRACK 400V 5.5T PACK. 3/3 |
