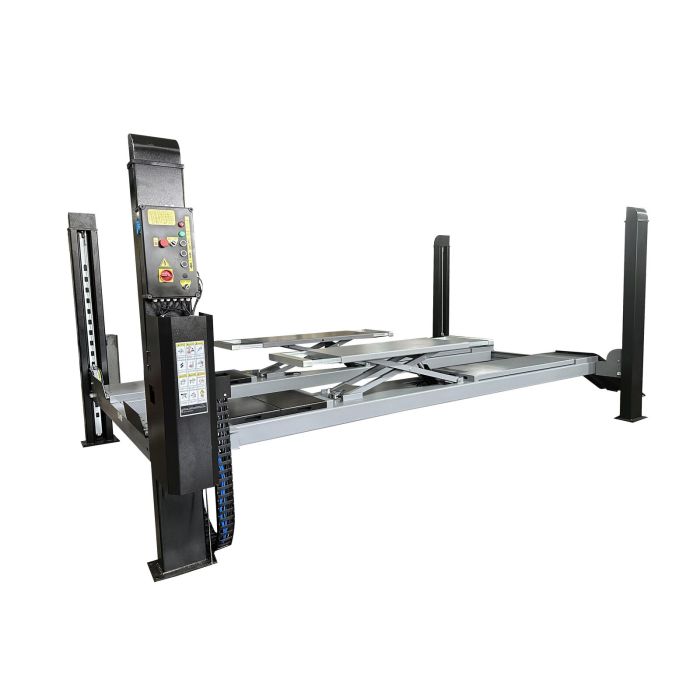

4 columns post lift 5T auxiliary lift 4T

SKU

PE 4102T

Product values View all features

Suitable for mechanical work on passenger cars and light commercial vehicles; ideally designed for wheel alignment thanks to the pneumatic swing plates and mounting points for optional turntables. 4-metric-ton lifting equipment with dual galvanized telescoping arms. Work comfort: access bays equipped with lifting equipment. Quick and easy positioning of vehicles with low ground clearance, enabling rapid repair or inspection; bays with a length of 5160 mm. Equipped with rails for optional lifting equipment. PE 7100 Optionally available: a parking set for storing 2 cars: PE 4103.

Special Price 13,390 ^€ ^{VAT Excl.} €75 Regular Price VAT Excl. 13,699 ^€ ^{VAT Excl.} €75

Offer valid only in mainland France

Characteristics

More Information
Item name	4 columns post lift 5T auxiliary lift 4T
Bar code	3701555318097
Text	Suitable for mechanical work on passenger cars and light commercial vehicles; ideally designed for wheel alignment thanks to the pneumatic swing plates and mounting points for optional turntables. 4-metric-ton lifting equipment with dual galvanized telescoping arms. Work comfort: access bays equipped with lifting equipment. Quick and easy positioning of vehicles with low ground clearance, enabling rapid repair or inspection; bays with a length of 5160 mm. Equipped with rails for optional lifting equipment. PE 7100 Optionally available: a parking set for storing 2 cars: PE 4103.
Product highlight	4T auxiliary lifts with galvanized double extensions
Specifications	Specifications: - lifting height: 220-1850mm - track width/length: 610/5160mm - adjustable distance between runways: 910-1010mm - required air supply 6-8 bar. - drive power: 3kW - drive voltage: (3 phases + Neutral) 400V/50Hz - maximum safety: single-cylinder lifting, synchronization driven by 4 cables - pneumatic release of safety catches - auxiliary lifts 5T capacity - safety system in case of cable breakage, - emergency lowering system in case of power failure - intermediate stop at 20 cm from the ground for operator safety, and anti-crushing audible signal - motor protection cover - 240V power socket on electrical box - pneumatic oscillating plates - Epoxy paint
Advice	Please consult us for installation and commissioning. Under warranty, installation and commissioning must be carried out by a professional. Transport costs not included.
Warranty period	2 years
Power	3000W
Voltage	400V
Width	3,185 mm
Height	2,350 mm
Product weight (kg)	1,990 kg
Max. height	1,850 mm
Min. height	220 mm
Drive through width	2,830 mm
Maximum load (T)	5 T
Tariff code	Tariff Equipment (TE)
Composition of nomenclature	1 x PE 4102T-1 - 4 columns post lift 5T auxiliary lift 1/1 4 x SA 3012 - Hv46 hydraulic oil 5l
Warranty Procedure	INTERVENTION
Customer benefit	Supplied with HV46 hydraulic oil and ground fixing kit
Pneumatic power supply required	YES
Circuit breaker/Cable section	16A D tetra / 5x2.5mm² (3PH + N + T)
Soil quality	>20cm Béton C20/25

Downloads

has as After sales service & consumables

SA 4605 Electromagnetic return valve

110 ^€ ^{VAT Excl.}
SA 4606 Hydraulic plug

10 ^€ ^{VAT Excl.}

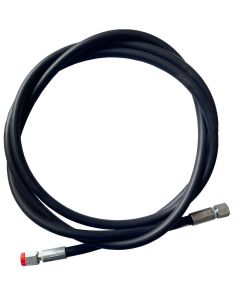

SA 4618 Tubing 2350

64 ^€ ^{VAT Excl.}

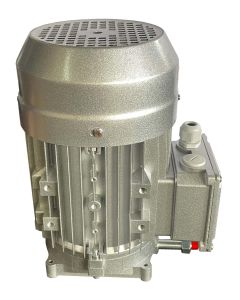

SA 4619 Scissor motor (400V)

450 ^€ ^{VAT Excl.}

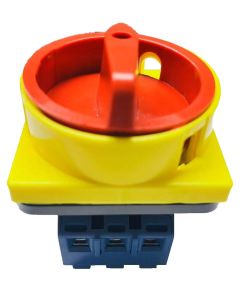

SA 4637 Power switch

34 ^€ ^{VAT Excl.}
SA 4638 1NO Push Button

10 ^€ ^{VAT Excl.}

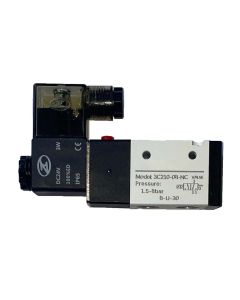

SA 4647 Solenoid valve

44 ^€ ^{VAT Excl.}

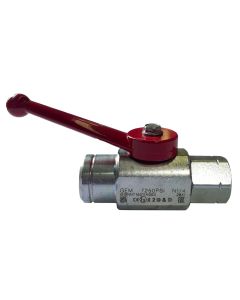

SA 4648 Ball valve

77 ^€ ^{VAT Excl.}

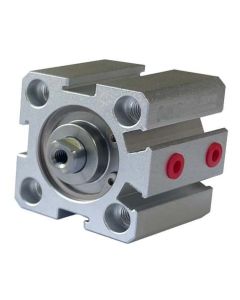

SA 4650 Sub lift safety device Open cylinder

30 ^€ ^{VAT Excl.}

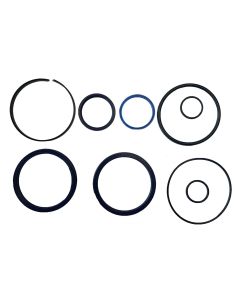

SA 4662 Secondary level mian cylinder oil seals group

84 ^€ ^{VAT Excl.}
SA 4663 Upper shear sub-cylinder sealing ring set

70 ^€ ^{VAT Excl.}

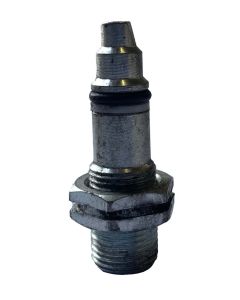

SA 4671 Throttle rod

10 ^€ ^{VAT Excl.}

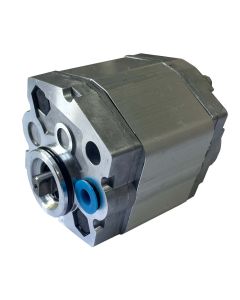

SA 4673 Scissor lift 400V gear pump

130 ^€ ^{VAT Excl.}
SA 4676 Air cylinder for lock system

40 ^€ ^{VAT Excl.}

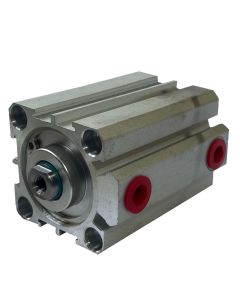

SA 4677 Air sensor

37 ^€ ^{VAT Excl.}
SA 4685 Oil seal group for 5 tons 4 post lift

70 ^€ ^{VAT Excl.}

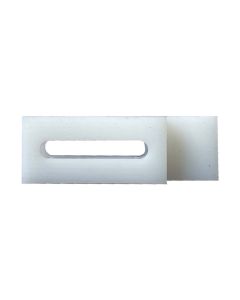

SA 4686 Sliding block

7 ^€ ^{VAT Excl.}

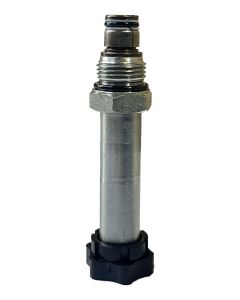

SA 4696 Two way check valve

150 ^€ ^{VAT Excl.}
SA 4698 Contactor

37 ^€ ^{VAT Excl.}

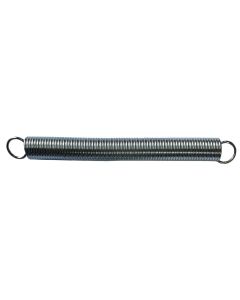

SA 4704 Spring 2

10 ^€ ^{VAT Excl.}
SA 4705 Spring 1

10 ^€ ^{VAT Excl.}

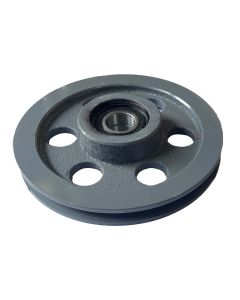

SA 4710 Wire rope pulley

137 ^€ ^{VAT Excl.}

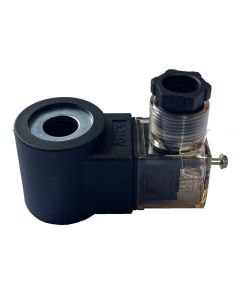

SA 4719 Oil return valve coil

27 ^€ ^{VAT Excl.}
SA 4720 Two-way check valve coil

37 ^€ ^{VAT Excl.}
SA 4721 Overflow valve

50 ^€ ^{VAT Excl.}

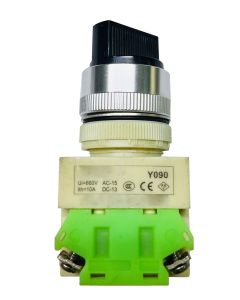

SA 4726 Transfer switch

17 ^€ ^{VAT Excl.}

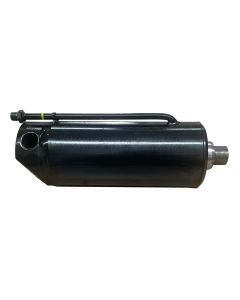

SA 4727 Secondary level main cylinder

560 ^€ ^{VAT Excl.}

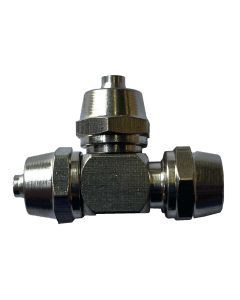

SA 4735 T-tee fitting APE6

7 ^€ ^{VAT Excl.}
SA 4764 Secondary lifting up limit switch

30 ^€ ^{VAT Excl.}
SA 4766 First level upper limit switch and second level lower limit switch

30 ^€ ^{VAT Excl.}

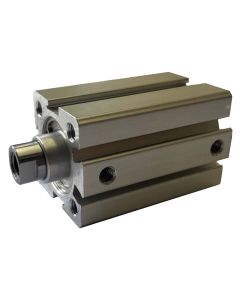

SA 4767 Slider board cylinder

54 ^€ ^{VAT Excl.}

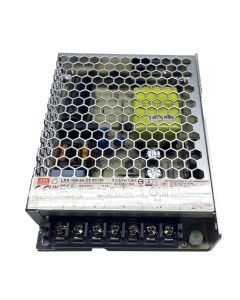

SA 4776 Power supply

60 ^€ ^{VAT Excl.}

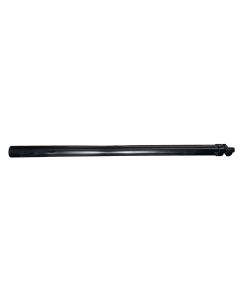

SA 4785 Oil cylinder

673 ^€ ^{VAT Excl.}

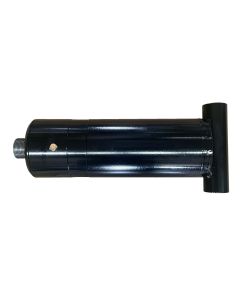

SA 4786 Secondary level sub cylinder

557 ^€ ^{VAT Excl.}
SA 4787 400V control box assembly

550 ^€ ^{VAT Excl.}

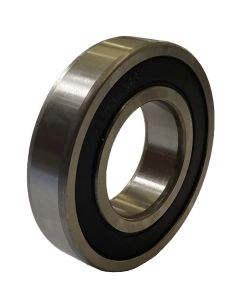

SA 4788 Wire rope pulley bearing

10 ^€ ^{VAT Excl.}
SA 4789 Bearing for double groove wheel

14 ^€ ^{VAT Excl.}
SA 4792 Tubing 2250

64 ^€ ^{VAT Excl.}
SA 4793 Tubing 2300

64 ^€ ^{VAT Excl.}
SA 4794 Tubing 2400

64 ^€ ^{VAT Excl.}
SA 4795 Tubing 5250

114 ^€ ^{VAT Excl.}

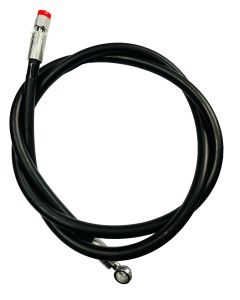

SA 4796 Tubing 3800

80 ^€ ^{VAT Excl.}
SA 4797 Tubing 3050

70 ^€ ^{VAT Excl.}

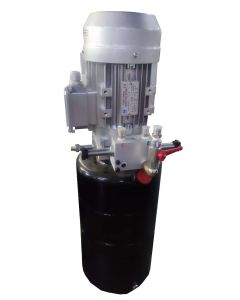

SA 4799 380V/400V pump station assembly

1,196 ^€ ^{VAT Excl.}

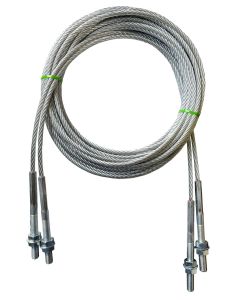

SA 4801 Wire rope 1

399 ^€ ^{VAT Excl.}

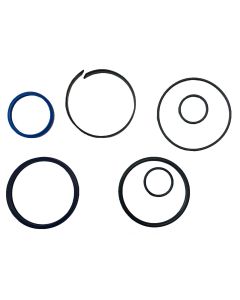

SA 4811 Oil tank rubber ring

10 ^€ ^{VAT Excl.}
SA 4818 Upper x sliding block

10 ^€ ^{VAT Excl.}

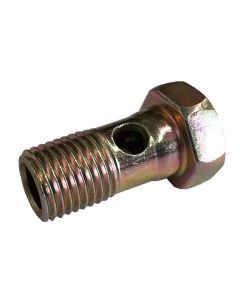

SA 4823 Cylinder connector

7 ^€ ^{VAT Excl.}

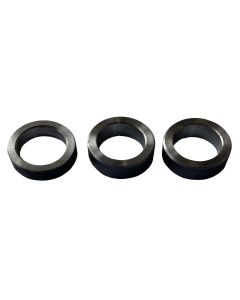

SA 4828 Spacer sleeve

10 ^€ ^{VAT Excl.}

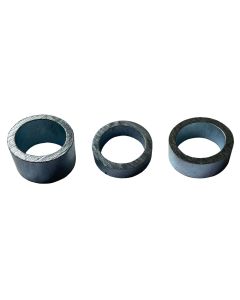

SA 4829 Spacer sleeve for single groove wheel

10 ^€ ^{VAT Excl.}

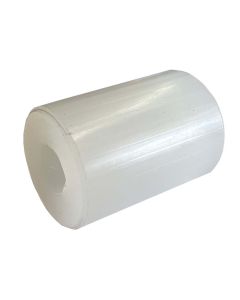

SA 4830 Ramp roller

4 ^€ ^{VAT Excl.}
SA 4832 Double-groove wire rope wheel

197 ^€ ^{VAT Excl.}

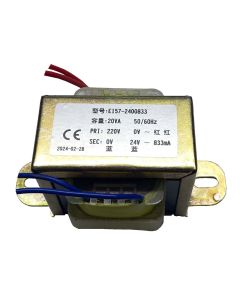

SA 4833 Transformer

30 ^€ ^{VAT Excl.}
SA 4835 Pcb control board

200 ^€ ^{VAT Excl.}
SA 4757 Alarm

7 ^€ ^{VAT Excl.}
