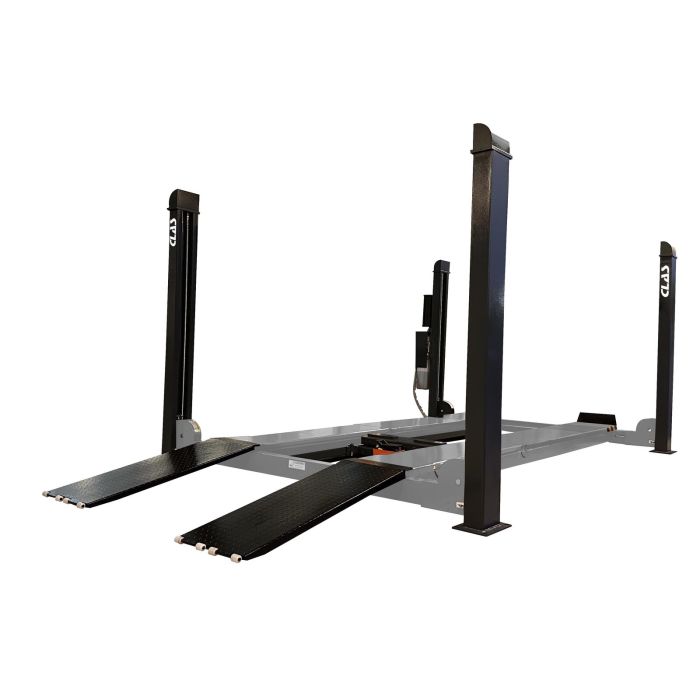

4 columns post lift flat oscillation track 400V 5.T
SKU
PE 4101T
Product values
View all features
Electro-hydraulic elevator ideally designed for geometry and technical inspection, with manual oscillating plates and optional turntable slots.
Suitable for mechanical work, passenger cars, light commercial vehicles and construction equipment.
Work comfort: One-piece access ramps, quick and easy vehicle positioning.
Fast, easy vehicle positioning with low ground clearance, for rapid repair or inspection, 5160mm long tracks
Equipped with rails for optional lifting crossbar. PE 7100
Optional parking kit for 2 cars. PE 4103.
7,499 €
VAT Excl.
€75
Characteristics
| Item name | 4 columns post lift flat oscillation track 400V 5.T |
|---|---|
| Bar code | 3701555318059 |
| Text |
Electro-hydraulic elevator ideally designed for geometry and technical inspection, with manual oscillating plates and optional turntable slots. Suitable for mechanical work, passenger cars, light commercial vehicles and construction equipment. Work comfort: One-piece access ramps, quick and easy vehicle positioning. Fast, easy vehicle positioning with low ground clearance, for rapid repair or inspection, 5160mm long tracks Equipped with rails for optional lifting crossbar. PE 7100 Optional parking kit for 2 cars. PE 4103. |
| Product highlight | Equipped with an air supply under the rails |
| Specifications |
Specifications: - lifting height: 220-1850mm - track width/length: 500/5160mm - adjustable distance between runways: 820/920mm - air supply 8bar - drive power: 3kW - drive voltage: (3 phases + Neutral) 400V/50Hz - maximum safety: single-cylinder lifting, 4-cable synchronized drive - pneumatic release of safety catches - safety system in case of cable breakage, - emergency lowering system in the event of power failure - intermediate stop at 20 cm from the ground for user safety and anti-crushing audible signal - air outlet with pneumatic connector in the middle of one of the inner platforms, under the rails - motor protection cover - 240V electrical outlet on electrical box - manual oscillating plates - epoxy paint |
| Options |
PE 7100 PE 0104 |
| Advice |
Please consult us for installation and commissioning. Under warranty, installation and commissioning must be carried out by a professional. Transport costs not included. |
| Warranty period | 2 years |
| Power | 3000W |
| Voltage | 400V |
| Width | 3,185 mm |
| Height | 2,350 mm |
| Product weight (kg) | 1,290 kg |
| Max. height | 1,850 mm |
| Min. height | 220 mm |
| Drive through width | 2,830 mm |
| Maximum load (T) | 5 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 4101T-1 - 4 columns post lift flat oscillation track 400V 5T 1/1 4 x SA 3012 - Hv46 hydraulic oil 5l |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | YES |
| Circuit breaker/Cable section | 16A D / 5x2.5mm2 |
| Soil quality | >20cm Béton C20/25 |
