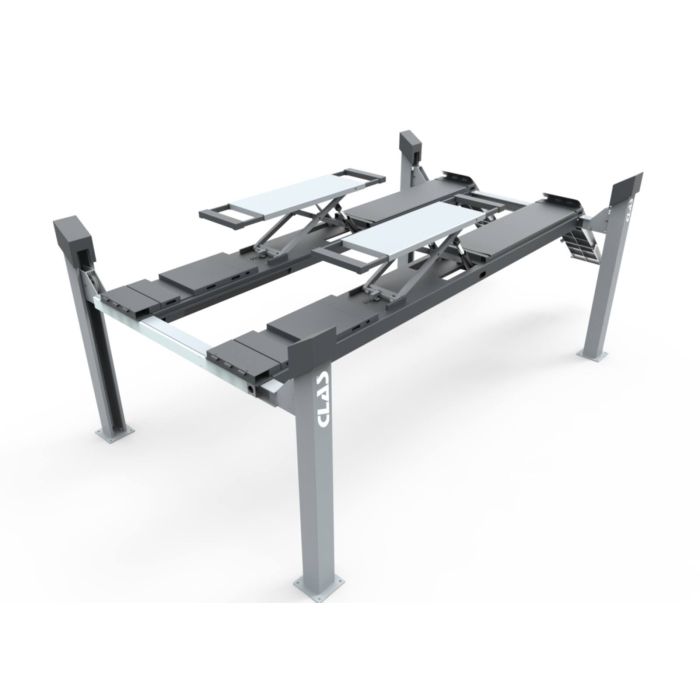

4 COLUMNS POST LIFT 5T AUXILIARY LIFT 3.5T
SKU
PE 4002T
Product values
View all features
Electro-hydraulic post lift. Ideal for geometry services using 3D technology.
Work comfort: access ramps equipped with 3.5T pneumatically-secured auxiliary lift.
Fast, easy positioning of low-clearance vehicle for rapid repair or inspection, 5.19m long and 640mm wide paths.
Suitable for mechanical work, passenger cars, light commercial vehicles, motorhomes and construction equipment.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 4102T - 4 COLUMNS POST LIFT 5T AUXILIARY LIFT 4T
Characteristics
| Item name | 4 COLUMNS POST LIFT 5T AUXILIARY LIFT 3.5T |
|---|---|
| Bar code | 3701555307268 |
| Text |
Electro-hydraulic post lift. Ideal for geometry services using 3D technology. Work comfort: access ramps equipped with 3.5T pneumatically-secured auxiliary lift. Fast, easy positioning of low-clearance vehicle for rapid repair or inspection, 5.19m long and 640mm wide paths. Suitable for mechanical work, passenger cars, light commercial vehicles, motorhomes and construction equipment. |
| Product highlight | Special geometry |
| Specifications |
Specifications : - lifting height: 250-1890mm - lifting time: +/- 45s - lowering time: +/- 55s - track width/length: 640 /5190mm - air supply 8bar - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - made in Europe - Epoxy paint |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Vehicle type | LCV |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 2,450 kg |
| Max. height | 1,896 mm |
| Min. height | 260 mm |
| Maximum load (T) | 5 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 4002T-1 - 4 COLUMNS POST LIFT 5T AUXILIARY LIFT 3.5T 1/2 1 x PE 4002T-2 - 4 COLUMNS POST LIFT 5T AUXILIARY LIFT 3.5T 2/2 |
| Warranty Procedure | INTERVENTION |
