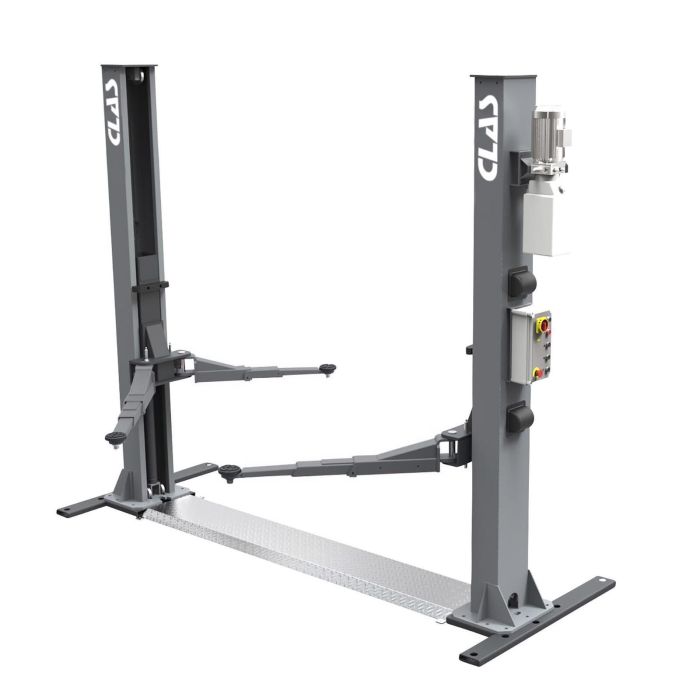

2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T
SKU
PE 2000T
Product values
View all features
Specially designed for screeds that don't meet the minimum thickness requirement of 200mm, or with slight flatness problems.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 2101 - 2 LEAN SCREED REINFORCEMENT FOR 2 COLUMNS POST LIFT BASEMENT 4T
Characteristics
| Item name | 2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T |
|---|---|
| Bar code | 3701555306902 |
| Introduction | Specially designed for screeds that don't meet the minimum thickness requirement of 200mm, or with slight flatness problems. |
| Text |
Electro-hydraulic post lift. Push cylinder on cart, chainless. Multiple lifting capacities thanks to telescopic arms in asymmetrical version (short front 3 stages from 560mm to 995mm - long rear 2 stages from 660 to 1210mm). Cylinder and cable protection strip included on each column. |
| Product highlight | Thin slab |
| Specifications |
Specifications : - lifting height: 126-1890mm - lifting time: +/- 40s - lowering time: +/- 40s - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 150mm-C20/25 - screw-adjustable pads, stroke 55mm - electromagnetic release of safety catches - overload and hose rupture protection - system synchronization: by cable - protective strip for cylinder, chain and cables included on each column - made in Europe - Epoxy paint |
| Options |
Options : - PE0007 : jeux de rehausses Mercedes / Iveco 105-135mm |
| Advice |
Consult us for installation and commissioning. Do not install on a slab less than 150mm thick. For warranty purposes, installation and commissioning must be carried out by a professional. Shipping costs excluded. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 800 kg |
| Maximum load (T) | 4 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2000T-2 - 2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T PACK. 2/3 1 x PE 2000T-3 - 2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T PACK. 3/3 1 x PE 2000T-1 - 2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T PACK. 1/3 |
