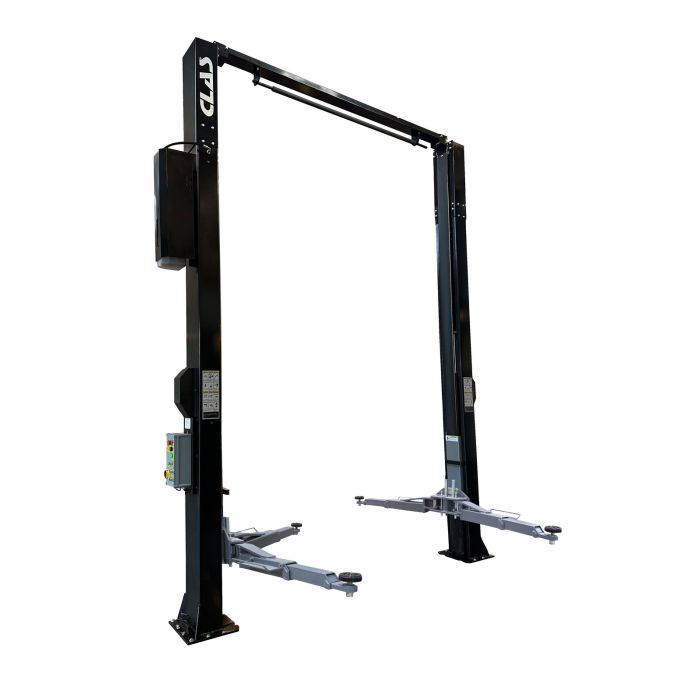

2 columns post lift high passage 3.90m 400V 4T 4 arms 1.50m
SKU
PE 2238T
Product values
View all features
Electro-hydraulic post lift.
Direct-acting lift cylinder mounted on the carriage.
Hoses and cables routed overhead for optimal working comfort, allowing unobstructed access under the vehicle for equipment (jacks, waste oil drainers, battery removal, etc.) and facilitating workshop cleaning.
Symmetrical telescoping arms with 4 arms in 3 stages, each 1,500 mm long.
4,299 €
VAT Excl.
€76.05
Characteristics
| Item name | 2 columns post lift high passage 3.90m 400V 4T 4 arms 1.50m |
|---|---|
| Bar code | 3701555318011 |
| Text |
Electro-hydraulic post lift. Direct-acting lift cylinder mounted on the carriage. Hoses and cables routed overhead for optimal working comfort, allowing unobstructed access under the vehicle for equipment (jacks, waste oil drainers, battery removal, etc.) and facilitating workshop cleaning. Symmetrical telescoping arms with 4 arms in 3 stages, each 1,500 mm long. |
| Product highlight | Free movement between columns |
| Specifications |
Specifications: - Lifting height: 950–1990 mm - Drive power: 2.2 kW - Drive voltage: (3-phase + neutral) 400 V/50 Hz - Adjustable stops on screws, travel: 70–140 mm - Electric release of safety locks - Emergency lowering system in case of power failure - System synchronization: via cable - Intermediate stop 20 cm above the floor for user safety and an anti-pinch audible alarm - Motor protective cover - Door protection on the columns - 240V electrical outlet on the control box - Protective strip for the cylinder and cables included on each column - Comes with 4 x 70mm risers and their brackets - Epoxy paint finish |
| Advice |
Installation et mise en service, nous consulter. Mise à disposition d’une nacelle impérative. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Length (mm) | 3,440 mm |
| Width | 44 mm |
| Height | 3,900 mm |
| Product weight (kg) | 792 kg |
| Max. height | 1,990 mm |
| Min. height | 950 mm |
| Drive through width | 2,600 mm |
| Maximum load (T) | 4 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2200 - 2 columns high passage 400V 4T without arms 1 x PE 2103T - Engine bloc 2 columns post lift 4T 1 x PE 2204 - 2 columns post lift high passage 4T 3m80 2 x PE 2111 - Pair of arms with block 1.50m and foot protection 2 x SA 3012 - Hv46 hydraulic oil 5l |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | NO |
| Circuit breaker/Cable section | 10A D tetra / 5x2.5mm² (3PH + N + T) |
| Soil quality | >20cm Béton C20/25 |
