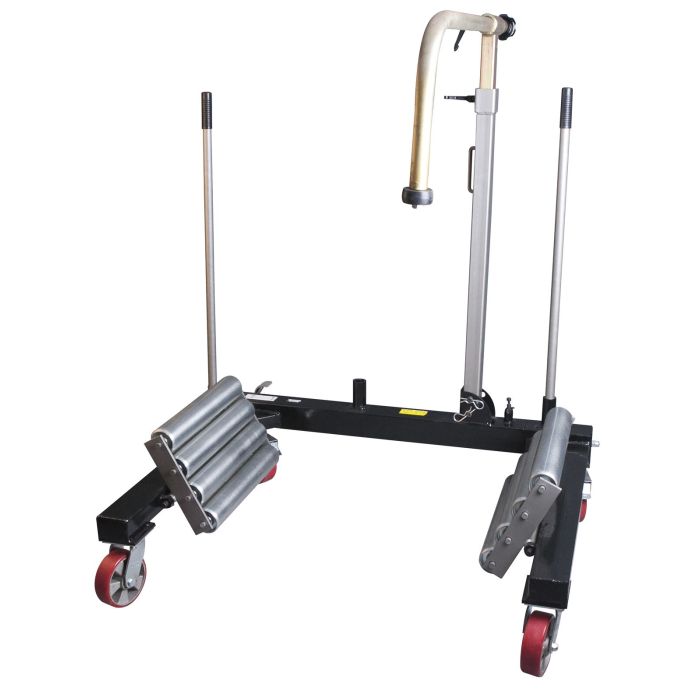

Wheel lifter hgv/public works/agricultural
SKU
OH 9000
Product values
View all features
Wheel lifted by hydraulic jack (maximum 1200kg).
1,290 €
VAT Excl.
Characteristics
| Item name | Wheel lifter hgv/public works/agricultural |
|---|---|
| Bar code | 3700461457760 |
| Introduction | Wheel lifted by hydraulic jack (maximum 1200kg). |
| Product highlight | Compatible with wide wheels |
| Specifications |
Specifications: - Height: min. 1,375 mm – max. 2,175 mm - Length: 940 mm - Width: min. 1,200 mm – max. 1,970 mm - Roller length: 500 mm - Distance between rollers: min. 720 mm – max. 1,250 mm - Rollers: Ø 76 mm - Ground clearance: 175 mm - Wheel diameter range: min. 1,000 mm–max. 2,200 mm - Wheel depth: 800 mm maximum - Cart wheels: 4 large PU wheels (Ø145 x 50 mm), 2 of which are swivel wheels equipped with brakes |
| Warranty period | 2 years |
| Vehicle type | HGV |
| Length (mm) | 940 mm |
| Max. height | 2,175 mm |
| Min. height | 1,375 mm |
| Maximum load (T) | 1.20 T |
| Tariff code | Tariff Normal (TN) |
| Warranty Procedure | DIAGNOSTIC |
