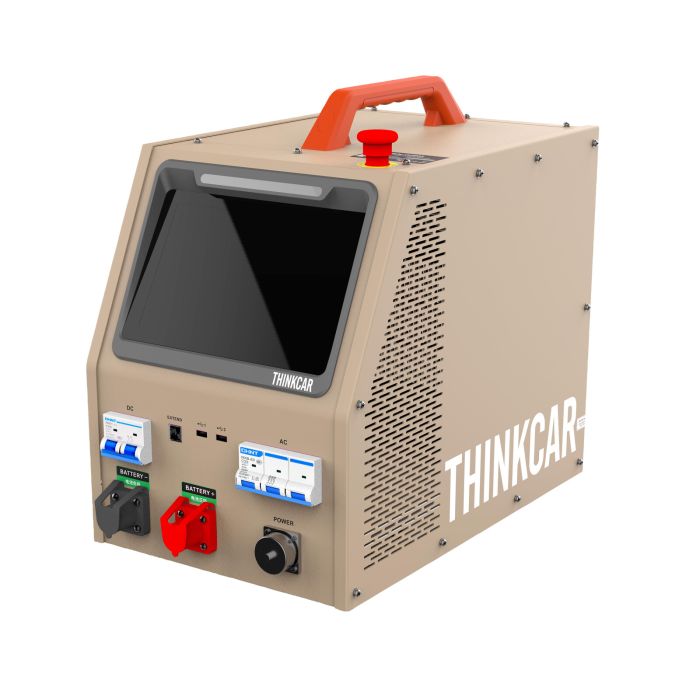

THINKCAR EVP903 BATTERY CHARGING AND DISCHARGING
SKU
30001450
Product values
View all features
72-channel panoramic monitor
Improves battery health and performance
11,900 €
VAT Excl.
€0.01
Characteristics
| Item name | THINKCAR EVP903 BATTERY CHARGING AND DISCHARGING |
|---|---|
| Bar code | 3701555326689 |
| Introduction |
72-channel panoramic monitor Improves battery health and performance |
| Text |
The ThinkCar EVP903 is an intelligent battery charging and discharging device for electric vehicle modules and batteries. By connecting directly to the positive and negative terminals of the battery pack, the EVP903 can quickly reach the target setting thanks to its high-voltage, high-current charging and discharging technology. It also supports health assessment and multi-dimensional data collection, significantly improving the efficiency and safety of battery maintenance. BMS protocol monitoring Compatibility with over 4,500 protocols Module status detection Multiple battery support 72-channel acquisition |
| Specifications |
Specifications: - Pack voltage accuracy: ±0.5% FS ±0.3 V (maximum range 400 V) - Single cell voltage accuracy: ±0.1% FS ±5 mV (maximum range 5 V) - Single cell current accuracy: ±0.5% FS ±0.2 A (100 A maximum range) - Channels: 72 channels (max) - Battery module voltage range: DC 2~400 V - Charging current range: 0~100 A, maximum power: 4.4 kW - Discharge current range: 0~100 A, maximum power: 7.2 kW - Charge control: constant-voltage charging, constant-current charging - Discharge control: constant-current discharge - Display: 10.1" touchscreen, resolution: 1280 × 800 - Power supply: 100 to 240 V AC, 50/60 Hz - Protection against overheating, overcurrent |
| Warranty period | 2 years |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | DIAGNOSTIC |
