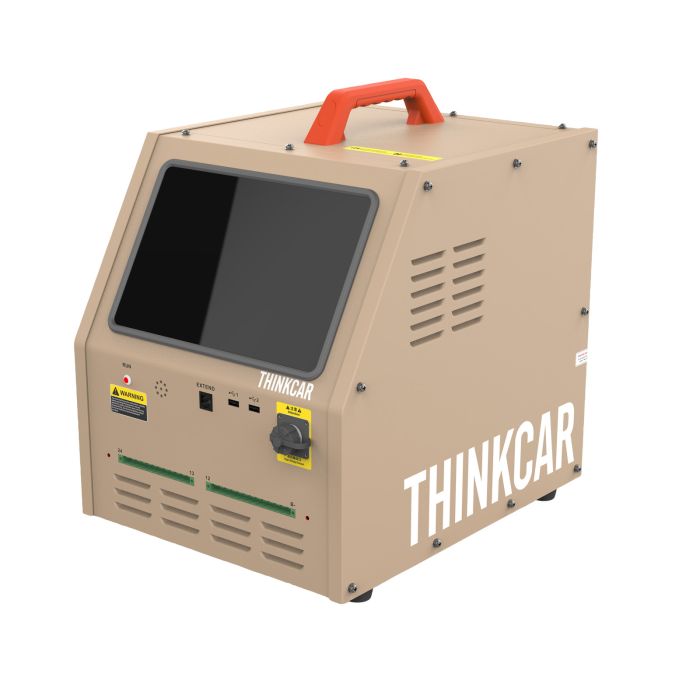

THINKCAR EVP803 BATTERY EQUALIZER
SKU
30001448
Product values
View all features
24-channel precision balancing solution for improved battery performance
8,990 €
VAT Excl.
€0.01
Characteristics
| Item name | THINKCAR EVP803 BATTERY EQUALIZER |
|---|---|
| Bar code | 3701555326672 |
| Introduction | 24-channel precision balancing solution for improved battery performance |
| Text |
The THINKCAR EVP 803 is an intelligent battery module balancer for electric vehicles, which can effectively improve the performance and lifetime of electric vehicle batteries. It supports independent balancing control of each cell, using low-voltage, high-current technology to precisely adjust cells to the same voltage level according to user-defined targets. |
| Specifications |
Specifications: - Power supply: AC 100~240 V/50-60 Hz - Battery module voltage range: DC 0-112 V - Cell voltage range: 1.6~5 V - Charging current range: 0.5~40 A, maximum power 3.2 kW - Discharge current range: 0.1-20 A, maximum power 2.4 kW - Single cell voltage accuracy: ±0.1% FS ±5 mV (maximum range 5 V) - Single cell current accuracy: ±0.5% FS ±0.05 A (maximum range 20 A) - Communication interfaces: WiFi, Bluetooth, USB, RJ45 Ethernet - Display: 10.1", resolution 1280 × 800 - Channels: 2 × 12 - Interface: 12-pin × 1 - 13-pin × 1 - Charge control: constant voltage/current charging - Discharge control: constant current/voltage discharge - Fault protection: protection against overload/discharge, reverse connection, disconnection, overtemperature and overcurrent |
| Warranty period | 2 years |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | DIAGNOSTIC |
