OIL PRESSURE INSERT, ETHANOL AND BP FUEL
SKU
AC 0844
Product values
View all features
Using the 0-300bars pressure sensor, this kit enables you to test engine oil pressure via the pressure switch and/or turbo lubrication on most Engines.
It can also be used to check the % of ethanol in the low-pressure petrol circuit.
790 €
VAT Excl.
Characteristics
| Item name | OIL PRESSURE INSERT, ETHANOL AND BP FUEL |
|---|---|
| Bar code | 3701555310213 |
| Introduction |
Using the 0-300bars pressure sensor, this kit enables you to test engine oil pressure via the pressure switch and/or turbo lubrication on most Engines. It can also be used to check the % of ethanol in the low-pressure petrol circuit. |
| Text |
For oil pressure : Time-saving: in just a few minutes, if the oil pressure sensor is not accessible (e.g. located behind the alternator), you can quickly take the oil pressure directly from the turbo, in place of the original banjo connector. To check ethanol % : This test checks whether the fuel system contains ethanol. Due to the enormous price difference between E85 and regular petrol, vehicle owners tend to fill up with E85 in unsuitable vehicles, which leads to : - engine combustion problems - engine knocking - dashboard engine warning lights coming on - to impossible engine starting |
| Specifications |

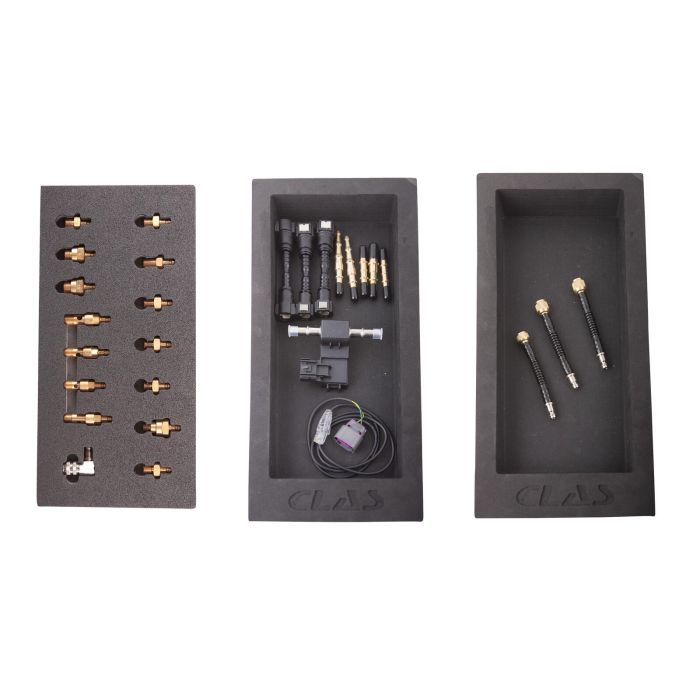

Specifications: - 10 adapters to fit most oil pressure sensors - 4 adapters to fit most Banjo turbo adapters - 1 90° quick connector Dimensions: contactor: - 1: 12.5x125 - 2: 13x140 - 3: 10x0.9 - 4: 9.5x1/8" - 5: 9.3x100 - 6: 10x100 - 7: 12x150 - 8: 14x150 - 9: 16x150 - 10: 18x150 banjo: - 11: 14x150 - 12: 12x150 - 13: 11x3/8unf - 14: 10x100 - adapter pack for OEM connectors - ethanol probe + cable to connect to tablet - 1 schrader connector 7/16" x 20unf - 1 8V1 schrader connector - 1 schrader connector M8X100 |
| Warranty period | Not applicable |
| Tariff code | Tariff Normal (TN) |
| Composition of nomenclature |
1 x AC 0815 - OIL PRESSURE ADAPTERS 1 x SA 0863 - EMPTY FOAM STORAGE TRAY 1/3 DRAWER FOR AC 0815 2 x EG 0080 - FOAM STORAGE TRAY 1 x AC 0807 - SCHRADER CONNECTOR 7/16" x 20UNF 1 x AC 0808 - SCHRADER CONNECTOR 8v1 1 x AC 0809 - SCHRADER CONNECTOR M8x100 1 x AC 0818 - ETHANOL E85 CONTROL ADAPTERS |
| Warranty Procedure | NO |
