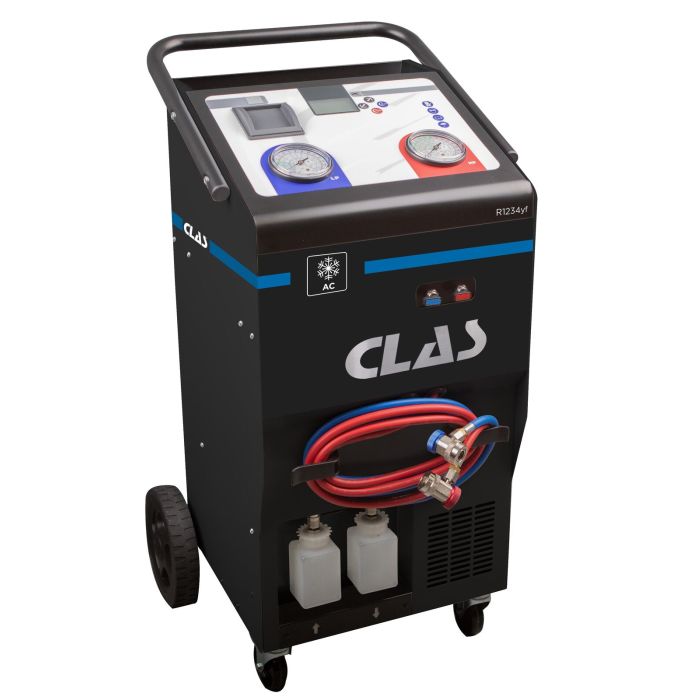

AUTOMATIC AIR CONDITIONING STATION R1234yf WITHOUT PRINTER/BELT
SKU
AC 8200
Product values
View all features
This easy-to-use machine makes air-conditioning system maintenance fun.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
AC 8344 - AUTOMATIC AIR CONDITIONING STATION R1234yf
Characteristics
| Item name | AUTOMATIC AIR CONDITIONING STATION R1234yf WITHOUT PRINTER/BELT |
|---|---|
| Bar code | 3701555310206 |
| Introduction | This easy-to-use machine makes air-conditioning system maintenance fun. |
| Text |
Functions : - diagnosis and maintenance of R1234yf air-conditioning loops - hybrid/electric vehicle compatible, with rapid oil flush system - fully automated work cycle with no manual valves - automatic, deep refrigerant gas recovery of over 95% (Cf. SAE J2788 standard) - automatic oil injection with scale - automatic air purge system - internal cleaning of station circuit - internal vehicle database (gas/oil), including LCV and agricultural vehicles, with free access to updates - A/C system diagnostics - printer: optional - waste oil recovery by gravity, with no gas contact with the atmosphere - supplied with filling adapter for R1234yf HP gas cylinder |
| Product highlight |
Integrated data vehicles Environmentally-friendly operation |
| Specifications |
Specifications : - 128x64 pixel LCD graphic display - 10cc compressor / 50l/min pump / 400g/min recuperator - 2 hermetically sealed 250ml bottles (used oil, new oil) with anti-moisture filtration system, equipped with male quick-connectors with plunger - 3m hose kit - HP/BP quick couplers - internal cylinder 9Kg / operating limit 1Kg - scale precision +/- 5g - calibration/locking tool - automatic air purge system - internal cleaning of station circuit - factory-assembled and tested |
| Options |
Option : - imprimante |
| Warranty period | 2 years |
| Cable length | 180 m |
| Length (mm) | 480 mm |
| Width | 510 mm |
| Height | 840 mm |
| Product weight (kg) | 50 kg |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | INTERVENTION |
