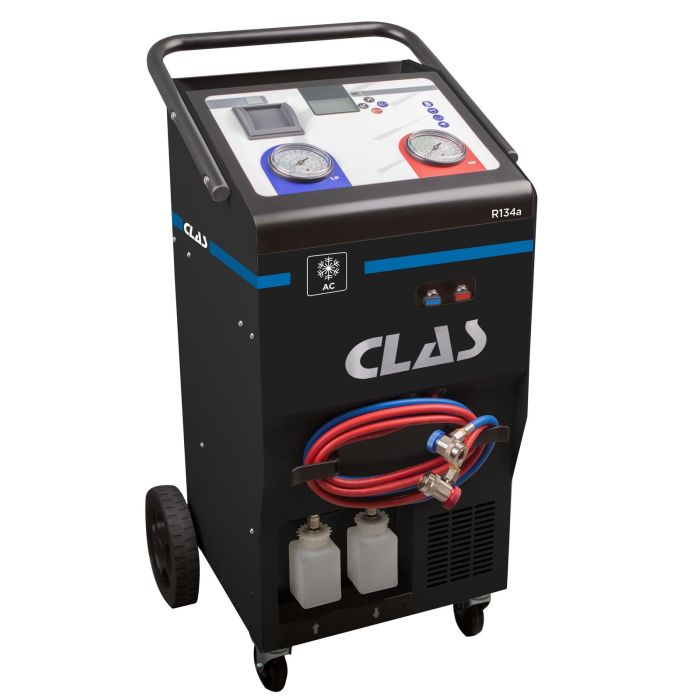

AUTOMATIC AIR CONDITIONING STATION R134a
SKU
AC 8544
Product values
View all features
This easy-to-use machine makes air-conditioning system maintenance fun.
With printer and heating belt!
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
AC 9544 - DIGITAL AUTOMATIC AIR CONDITIONING STATION R134a
Characteristics
| Item name | AUTOMATIC AIR CONDITIONING STATION R134a |
|---|---|
| Bar code | 3701555313146 |
| Introduction |
This easy-to-use machine makes air-conditioning system maintenance fun. With printer and heating belt! |
| Text |
Functions : - diagnosis and maintenance of R134a air-conditioning loops - hybrid/electric vehicle compatible with quick oil flush system - fully automated work cycle with no manual valves - automatic, deep refrigerant gas recovery of over 95% (Cf. SAE J2788 standard) - automatic oil injection with scale - automatic air purge system - internal cleaning of station circuit - heating belt - internal vehicle database (gas/oil), including LCV and agricultural vehicles, with free access to updates - A/C system diagnostics - printer - waste oil recovery by gravity, with no gas contact with the atmosphere - supplied with filling adapter for R134a HP gas cylinder - machine maintenance: ISO68 VACUUM PUMP OIL 1L or 5l (CO 6141 or CO 6142) and AIR CONDITIONING STATION FILTER (CO 6006) |
| Product highlight |
Integrated vehicle data. Gas quantities supplied. |
| Specifications |
Specifications : - 128x64 pixel LCD graphic display - 10cc compressor / 50l/min pump / 400g/min recuperator - 2 hermetically sealed 250ml bottles (used oil, new oil) with anti-moisture filtration system, equipped with male quick connectors with plunger - 3m hose kit - HP/BP quick couplers - internal cylinder 9Kg / operational limit 1Kg - heating belt - scale accuracy +/- 5g - calibration/locking tool - automatic air purge system - internal cleaning of station circuit - factory-assembled and tested |
| Warranty period | 2 years |
| Voltage | 240V |
| More | Products with electrical plug |
| Cable length | 300 m |
| Length (mm) | 480 mm |
| Width | 510 mm |
| Height | 840 mm |
| Product weight (kg) | 50 kg |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | INTERVENTION |
