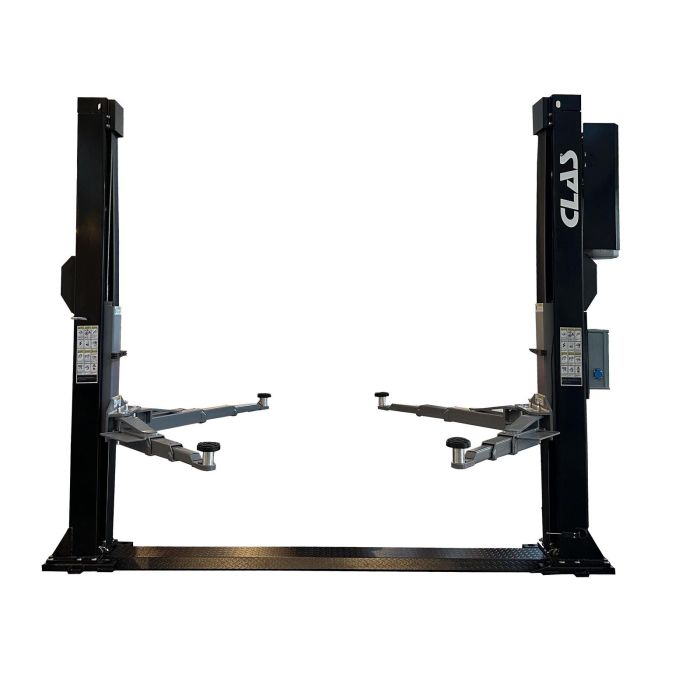

2 columns symetric post lift with basement 400V 4T 4 arms 1.50m
SKU
PE 2105T
Product values
View all features
Lift designed to facilitate the installation and alignment of columns thanks to its 40-mm-thick base.
When used with the PE 2101 option, it addresses the issue of screeds that do not meet the minimum thickness requirement of 200 mm (allows for coverage down to 150 mm) or that have a slight unevenness issue.
Electro-hydraulic post lift.
Cable-driven push cylinder; carriage driven by chain.
Symmetrical telescoping arms with three 1,500-mm-long stages
4,199 €
VAT Excl.
€76.05
Characteristics
| Item name | 2 columns symetric post lift with basement 400V 4T 4 arms 1.50m |
|---|---|
| Bar code | 3701555318141 |
| Text |
Lift designed to facilitate the installation and alignment of columns thanks to its 40-mm-thick base. When used with the PE 2101 option, it addresses the issue of screeds that do not meet the minimum thickness requirement of 200 mm (allows for coverage down to 150 mm) or that have a slight unevenness issue. Electro-hydraulic post lift. Cable-driven push cylinder; carriage driven by chain. Symmetrical telescoping arms with three 1,500-mm-long stages |
| Product highlight | Low-thickness passage |
| Specifications |
Specifications: - Lifting height: 100–2,100 mm - Drive power: 2.2 kW - Drive voltage: (3-phase + neutral) 400 V/50 Hz - Adjustable stops on lead screw, travel: 70–140 mm - Automatic release of safety locks - Emergency lowering system in case of power failure - System synchronization: via cable - Intermediate stop 20 cm above the floor for user safety and an anti-pinch audible alarm - Motor protective cover - Door protection on the columns - 240V electrical outlet on the control box - Protective strip for the cylinder, chain, and cables included on each column - Comes with 4 x 70mm risers and their brackets - Epoxy paint finish |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Length (mm) | 3,440 mm |
| Width | 44 mm |
| Height | 2,965 mm |
| Product weight (kg) | 799 kg |
| Max. height | 2,100 mm |
| Min. height | 100 mm |
| Drive through width | 2,460 mm |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2102 - 2 columns with basement 400V 4T without arms 1 x PE 2103T - Engine bloc 2 columns post lift 4T 1 x PE 2104 - 2 columns post lift with basement accessories 4T 2 x PE 2111 - Pair of arms with block 1.50m and foot protection 2 x SA 3012 - Hv46 hydraulic oil 5l 1 x PE 2117 - 2 columns post lift base 4T low passage |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | NO |
| Circuit breaker/Cable section | 10A D tetra / 5x2.5mm² (3PH + N + T) |
| Soil quality | >20cm Béton C20/25 |
