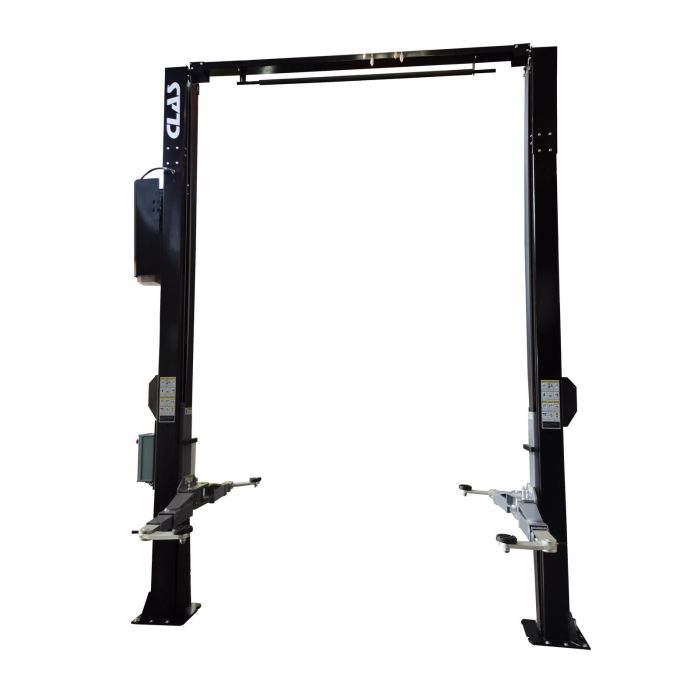

2 columns post lift high passage 5.10m 400V 4T 4 arms 1.80m
SKU
PE 2250T
Product values
View all features
Electro-hydraulic post lift.
Direct-acting push cylinder mounted on the carriage.
Hoses and cables routed from above for optimal working comfort, allowing unobstructed access under the vehicle to equipment (cylinders, waste oil drainers, etc.) and facilitating workshop cleaning.
Symmetrical telescopic arms with 4 arms in 3 stages, each 1,800 mm long.
4,899 €
VAT Excl.
€80.65
Characteristics
| Item name | 2 columns post lift high passage 5.10m 400V 4T 4 arms 1.80m |
|---|---|
| Bar code | 3701555318103 |
| Text |
Electro-hydraulic post lift. Direct-acting push cylinder mounted on the carriage. Hoses and cables routed from above for optimal working comfort, allowing unobstructed access under the vehicle to equipment (cylinders, waste oil drainers, etc.) and facilitating workshop cleaning. Symmetrical telescopic arms with 4 arms in 3 stages, each 1,800 mm long. |
| Product highlight | free circulation between columns |
| Specifications |
Specifications: - Lifting height: 95–1,990 mm - Drive power: 2.2 kW - Drive voltage: (3-phase + neutral) 400 V/50 Hz - Adjustable stops on screws, stroke 70–140 mm - Electric release of safety locks - Emergency lowering system in case of power failure - Intermediate stop 20 cm above the floor for user safety and an anti-pinch audible alarm - Motor protective cover - Door protection on the columns - 240V electrical outlet on the control box - Protective strip for the cylinder and cables included on each column - Comes with 4 x 70mm risers and their brackets - Epoxy paint finish |
| Advice |
Installation et mise en service, nous consulter. Mise à disposition d’une nacelle impérative. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Length (mm) | 3,440 mm |
| Width | 44 mm |
| Height | 5,100 mm |
| Product weight (kg) | 876 kg |
| Max. height | 1,990 mm |
| Min. height | 95 mm |
| Drive through width | 2,600 mm |
| Maximum load (T) | 4 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2200 - 2 columns high passage 400V 4T without arms 1 x PE 2103T - Engine bloc 2 columns post lift 4T 2 x PE 2112 - Pair of arms with block 1.80m and foot protection 1 x PE 2203 - High passage extension and accessories 4T 5m00 2 x SA 3012 - Hv46 hydraulic oil 5l |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | NO |
| Circuit breaker/Cable section | 10A D tetra / 5x2.5mm² (3PH + N + T) |
| Soil quality | >20cm Béton C20/25 |
