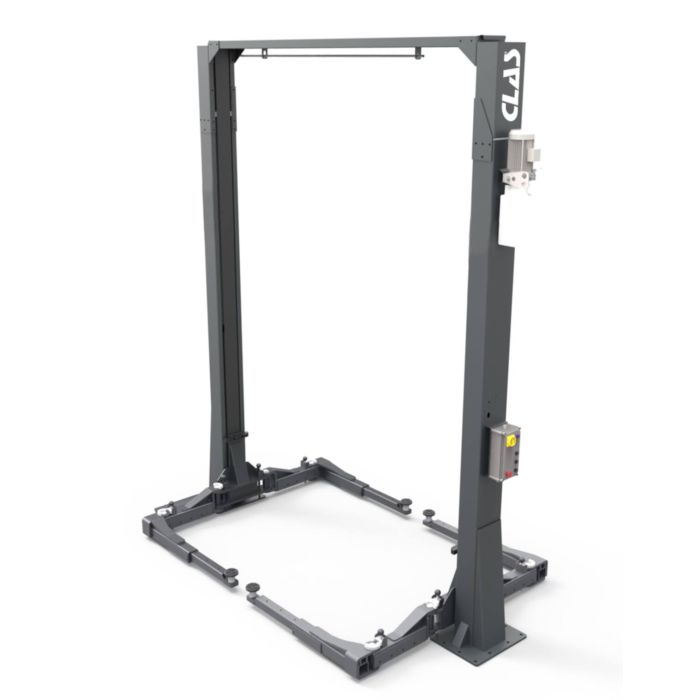

2 COLUMNS POST LIFT 400V 6T HIGH PASSAGE 3870mm 2.6Kw
SKU
PE 2010T
Product values
View all features
Particularly suited to repair work on extended utility vehicles, 4x4s and microcars.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 2339T - 2 COLUMNS POST LIFT HIGH PASSAGE 3.90m 400V 6T 4 ARTICULATED ARMS
Characteristics
| Item name | 2 COLUMNS POST LIFT 400V 6T HIGH PASSAGE 3870mm 2.6Kw |
|---|---|
| Bar code | 3701555307039 |
| Introduction | Particularly suited to repair work on extended utility vehicles, 4x4s and microcars. |
| Text |
Electro-hydraulic post lift. Multi-jointed arm. Hose and cable routing from the top for optimum working comfort, allowing free access to equipment under the vehicle (cylinders, oil recuperator, etc.), facilitating workshop cleaning. Hydraulic power pack: rapid ascent and descent with adjustment facility, equipped with a position safety device for precise intervention, gearbox assembly, nut alignment... Multiple lifting capacities thanks to articulated arms in symmetrical version (3 stages from 930 to 1860mm) enabling millimetre-adjustable lifting of vehicles. |
| Product highlight | Wide scope of application |
| Specifications |
Specifications : - lifting height: 100-1920mm - lifting time: +/- 80s - lowering time: +/- 100s - drive power: 2.6kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - screw-adjustable pads, stroke 55mm (+ raised 70 and 160mm) - electromagnetic release of safety catches - beveled columns for large door openings - overload and hose rupture protection - semi-automatic hydraulic system synchronization - made in Europe - Epoxy paint |
| Options |
Options : - PE0007 : Jeux de rehausses Mercedes / Iveco 105-135mm |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2600W |
| Voltage | 400V |
| Product weight (kg) | 1,260 kg |
| Maximum load (T) | 6 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature | 1 x PE 2010T-1 - 2 COLUMNS POST LIFT 400V 6T HIGH PASSAGE 4480mm 2.6Kw PACK. 1/1 |
