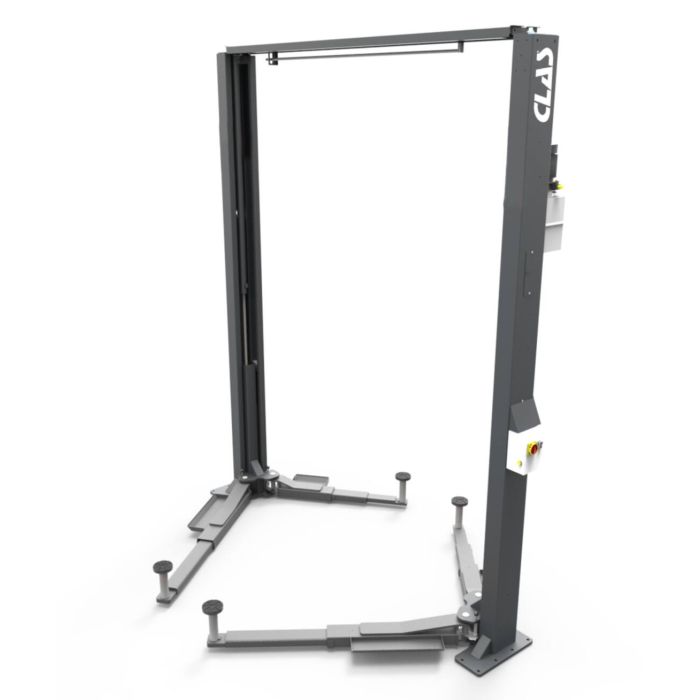

2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw
SKU
PE 2009T
Product values
View all features
Electro-hydraulic post lift.
Hose and cable routing from the top for optimum working comfort, allowing free access under the vehicle to equipment (cylinders, oil recuperator, etc.), facilitating workshop cleaning.
Multiple lifting capacities thanks to telescopic arms in asymmetrical version (short front 3 stages from 640 to 1200mm, long rear 2 stages from 775 to 1550mm) for precise lifting of low or utility vehicles.
Price upon request
This product is no longer listed with us
Characteristics
| Item name | 2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw |
|---|---|
| Bar code | 3701555306995 |
| Text |
Electro-hydraulic post lift. Hose and cable routing from the top for optimum working comfort, allowing free access under the vehicle to equipment (cylinders, oil recuperator, etc.), facilitating workshop cleaning. Multiple lifting capacities thanks to telescopic arms in asymmetrical version (short front 3 stages from 640 to 1200mm, long rear 2 stages from 775 to 1550mm) for precise lifting of low or utility vehicles. |
| Product highlight | Height adjustable to the millimetre |
| Specifications |
Specifications : - lifting height: 65-1980mm - precise adjustment + thanks to pneumatic safety device - lifting time: +/- 40s - lowering time: +/- 40s - drive power: 2.6kW - drive voltage: (3~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - screw-adjustable pads, stroke 55mm (+ raised 70 and 160mm) - electromagnetic release of safety catches - beveled columns for large door openings - overload and hose rupture protection - semi-automatic hydraulic system synchronization - made in Europe - Epoxy paint |
| Options |
Options : - PE0007: Mercedes/Iveco 105-135mm extension sets |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2600W |
| Voltage | 400V |
| Product weight (kg) | 720 kg |
| Max. height | 4,470 mm |
| Maximum load (T) | 4 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature | 1 x PE 2009T-1 - 2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw PACK. 1/1 |
