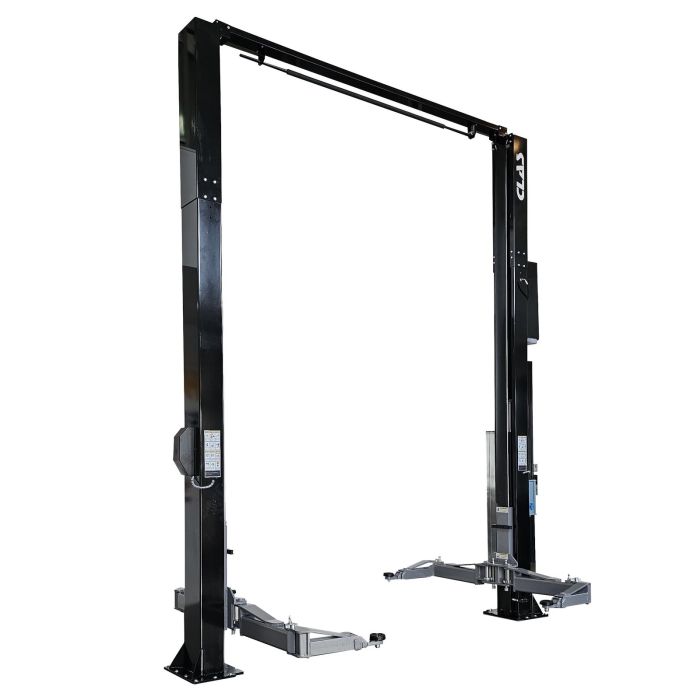

2 column high passage deck 5.10m 400V 6T 4 arm articules
SKU
PE 2350T
Product values
View all features
Particularly suited to repair work on extended utility vehicles, 4x4s, microcars, hybrids and electrics.
Electro-hydraulic post lift.
Direct push cylinder on carriage.
Arms with adjustable joints.
Hose and cable routing from the top for optimum working comfort, allowing free access to equipment under the vehicle (cylinders, oil recuperator, battery removal, etc.), facilitating workshop cleaning.
Hydraulic power pack: equipped with a position safety device for precise intervention, gearbox assembly, nut alignment, etc.
Multiple lifting capacities thanks to 4 multi-adjustable articulated arms.
Cylinder and cable protection strip included on each column.
10,990 €
VAT Excl.
€80.65
Characteristics
| Item name | 2 column high passage deck 5.10m 400V 6T 4 arm articules |
|---|---|
| Bar code | 3701555318042 |
| Text |
Particularly suited to repair work on extended utility vehicles, 4x4s, microcars, hybrids and electrics. Electro-hydraulic post lift. Direct push cylinder on carriage. Arms with adjustable joints. Hose and cable routing from the top for optimum working comfort, allowing free access to equipment under the vehicle (cylinders, oil recuperator, battery removal, etc.), facilitating workshop cleaning. Hydraulic power pack: equipped with a position safety device for precise intervention, gearbox assembly, nut alignment, etc. Multiple lifting capacities thanks to 4 multi-adjustable articulated arms. Cylinder and cable protection strip included on each column. |
| Product highlight |
6T capacity Multi-position arm |
| Specifications |
Specifications: - Lifting height: 95–1,850 mm - Drive power: 2.2 kW - Drive voltage: (3-phase + neutral) 400 V/50 Hz - Concrete strength/grade: 200 mm–C20/25 - Adjustable screw-type stops with 70–140 mm travel - Electric release of safety locks - Emergency lowering system in case of power failure - System synchronization: via cable - Intermediate stop 20 cm above the floor for user safety and an anti-crushing audible alarm - Motor protective cover - Door protection on the columns - 240V electrical outlet on the control box - Protective strip for the cylinder and cables included on each column - Comes with 4 x 70mm risers and their brackets - Epoxy paint finish |
| Advice |
Installation et mise en service, nous consulter. Mise à disposition d’une nacelle impérative. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Length (mm) | 4,000 mm |
| Height | 5,000 mm |
| Product weight (kg) | 1,114 kg |
| Max. height | 1,850 mm |
| Min. height | 95 mm |
| Drive through width | 3,190 mm |
| Maximum load (T) | 6 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2340 - 2 columns high passage 400V 6T without arms 1 x PE 2355T - Engine bloc 2 columns post lift 6T 2 x PE 2341 - Pair of articulated arms for 6T 1 x PE 2343 - High passage extension 5m00 for 6T 2 x SA 3012 - Hv46 hydraulic oil 5l |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | NO |
| Circuit breaker/Cable section | 10A D tetra / 5x2.5mm² (3PH + N + T) |
| Soil quality | >20cm Béton C20/25 |
