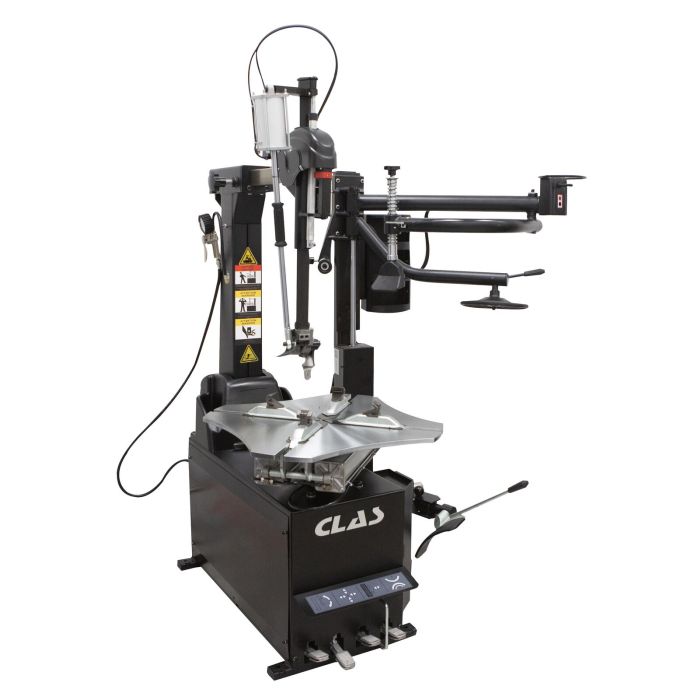

Tire changer with leverless 13-28" 2 speed system 400V

SKU

DM 1900

Product values View all features

Automatic 2-speed flatbed tire changer with mounting aid (assistance arm) + pneumatic assistance on leverless stem. Specially designed for effortless mounting and demounting of all passenger car, commercial vehicle and 4x4 tires. Equipped with the leverless doight, this device eliminates the exercise lever for greater working comfort, and prevents RSI (Musculoskeletal Disorders).

Special Price 4,350 ^€ ^{VAT Excl.} €75 Regular Price VAT Excl. 4,590 ^€ ^{VAT Excl.}

Offer valid only in mainland France

DM 1306

Ø30mm angled brush for tire cream
Free

DM 1320

White tire mounting paste 5kg
Free

DM 1330

Black tire mounting paste 5kg
Free

Qty

Add to Wish List

Our selection

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	Tire changer with leverless 13-28" 2 speed system 400V
Bar code	3701555311531
Introduction	Automatic 2-speed flatbed tire changer with mounting aid (assistance arm) + pneumatic assistance on leverless stem. Specially designed for effortless mounting and demounting of all passenger car, commercial vehicle and 4x4 tires. Equipped with the leverless doight, this device eliminates the exercise lever for greater working comfort, and prevents RSI (Musculoskeletal Disorders).
Text	Please consult us for installation and commissioning. Under warranty, installation and commissioning must be carried out by a professional.
Product highlight	Effortless
Specifications	Specifications: - horizontal arm moving on roller for easy translation - jib equipped with a leverless pneumatic finger - inflator with pressure gauge - maximum tire diameter: 1100mm - max. tire width: 3 to 14 inches - arched platform with anti-pinch safety device - outer rim diameter: 13 to 24 inches - inner rim diameter: 15 to 28 inches - 2 speeds without switch : rotation speed 1: 6.5 rpm rotation speed 2: 13rpm - ergonomic, intuitive pedals - telescopic, 4-position adjustable take-off scoop (2 open, 2 deep) with double-acting cylinder - operating pressure: 8-10bar - air cleaner and oil lubricator - tubeless inflation safety valve: 3.5bar - noise < 70dB - power supply: 400V-50Hz - power: 0.85-1.1kW - bead breaker power: 2800kg - dimensions: 1900x1580x2000mm
Contents	Supplied with : - SA8902: 5 protective pads for steel heads - SA8903 : 5 protective clips for steel heads - SA8904 : 1 protection shovel stripper - SA8906: set of 4 aluminum rim protectors - 1 tire changer with aluminum rim protector
Warranty period	2 years
Power	1100W
Voltage	400V
Length (mm)	1,900 mm
Width	1,580 mm
Product weight (kg)	465 kg
Tariff code	Tariff Equipment (TE)
Warranty Procedure	INTERVENTION
Pneumatic power supply required	YES
Quick tip videos	Cliquez sur l'opération qui vous intéresse pour voir la vidéo: RÉGLAGE PELLE D'ÉTALONNAGE RÉGLAGE DE LA VITESSE DE LA POTENCE
Operation videos	Cliquez sur l'opération qui vous intéresse pour voir la vidéo: UTILISATION DOIGT PNEUMATIQUE

Downloads

has as After sales service & consumables

SA 0195 T-fitting for turntable cylinder Ø8mm

12 ^€ ^{VAT Excl.}
SA 1328 Heel to arm assist pusher

4 ^€ ^{VAT Excl.}
SA 1329 Star thrust arm

20 ^€ ^{VAT Excl.}
SA 0146 Support arm cylinder

232 ^€ ^{VAT Excl.}
SA 0149 Support arm control box

179 ^€ ^{VAT Excl.} €0.05
SA 0201 Support arm disc

68 ^€ ^{VAT Excl.}
SA 0205 Support arm roller

24 ^€ ^{VAT Excl.}
SA 0208 Guide plates (x4)

29 ^€ ^{VAT Excl.}
SA 0136 Releaser protection pad

56 ^€ ^{VAT Excl.}
SA 0174 Flat springs for cranksets

75 ^€ ^{VAT Excl.}
SA 0203 Vertical/horizontal axis-locking cylinder

91 ^€ ^{VAT Excl.}
SA 0150 Engine belt

22 ^€ ^{VAT Excl.}
SA 2099 Engine 1,1kw 400V three-phase wheel service equipment

688 ^€ ^{VAT Excl.} €2.69
SA 2081 Tire remover gearbox

255 ^€ ^{VAT Excl.}
SA 8904 Blade protection cover 260x80mm

19 ^€ ^{VAT Excl.}
SA 1902 Yellow fixed head protection

2.80 ^€ ^{VAT Excl.}
SA 1903 Yellow articulated head protection

3.20 ^€ ^{VAT Excl.}
SA 1904 Head with leverless finger

320 ^€ ^{VAT Excl.}
SA 1905 Jaws

19.20 ^€ ^{VAT Excl.}
SA 1906 4 jaw protections

32 ^€ ^{VAT Excl.}
SA 1907 Pneumatic head descent cylinder

131 ^€ ^{VAT Excl.}
SA 1908 Pneumatic leverless finger articulation cylinder

136 ^€ ^{VAT Excl.}
SA 1909 Pneumatic leverless finger control

216 ^€ ^{VAT Excl.}
SA 1910 Pneumatic control for arm lift/lower/lock

35 ^€ ^{VAT Excl.}
SA 1911 Adjustable pneumatic exhaust

6.40 ^€ ^{VAT Excl.}
SA 1912 Upper plastic protection for jib

23 ^€ ^{VAT Excl.}
SA 1913 Detacher

380 ^€ ^{VAT Excl.}
SA 1914 Complete pedal assembly

252 ^€ ^{VAT Excl.}
SA 1915 Contactor

79 ^€ ^{VAT Excl.} €0.09
SA 1916 Contactor guard

6.80 ^€ ^{VAT Excl.}
SA 1917 Contactor cam

4.80 ^€ ^{VAT Excl.}
SA 1918 Contactor connecting rod

6.20 ^€ ^{VAT Excl.}
SA 1919 Pneumatic distributor for detacher

43 ^€ ^{VAT Excl.}
SA 1920 Pneumatic distributor for jaws

42 ^€ ^{VAT Excl.}
SA 1923 Pneumatic distributor for arm

47 ^€ ^{VAT Excl.}
SA 1924 Rotation pedal

23 ^€ ^{VAT Excl.}
SA 1925 Detacher/jaws/arm pedal

23 ^€ ^{VAT Excl.}
SA 1926 Table cylinder

147 ^€ ^{VAT Excl.}
SA 1927 Arm cylinder

135 ^€ ^{VAT Excl.}
SA 1933 Horizontal locking cylinder

63 ^€ ^{VAT Excl.}
SA 1934 Horizontal locking plate

74 ^€ ^{VAT Excl.}
SA 1935 Vertical locking plate

66 ^€ ^{VAT Excl.}
SA 1936 Detacher shovel

66 ^€ ^{VAT Excl.}
SA 1937 Rubber stop for stripper arm

8 ^€ ^{VAT Excl.}
SA 1938 Inflator

89 ^€ ^{VAT Excl.}
SA 1939 Air/oil regulator

112 ^€ ^{VAT Excl.}
SA 1940 Pneumatic table manifold

69 ^€ ^{VAT Excl.}
SA 0202 2-speed contactor

79 ^€ ^{VAT Excl.} €0.14
SA 1321 Shovel for tire changer

74 ^€ ^{VAT Excl.}
SA 0168 Pedal spiral spring

5 ^€ ^{VAT Excl.}
