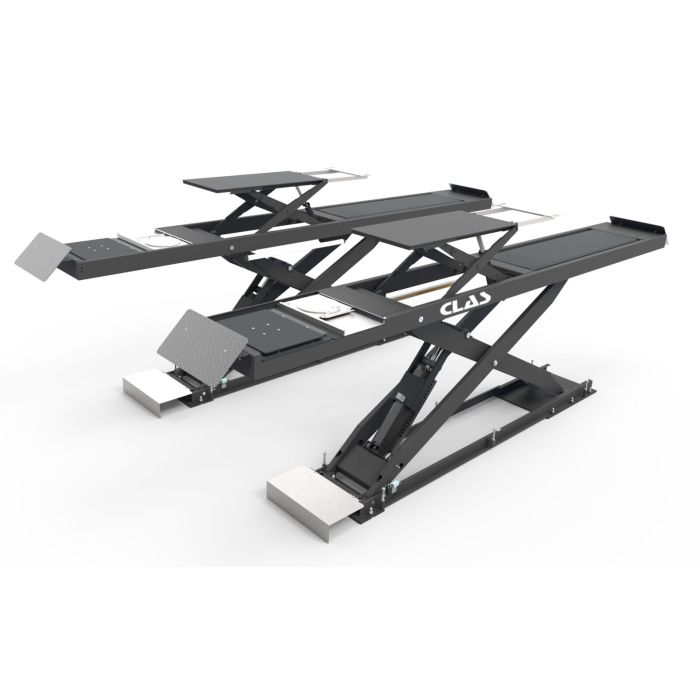

SCISSOR LIFT 5T AUXILIARY LIFT 3.5T PACK. 1/1
SKU
PE 6007T
Product values
View all features
Particularly suitable for technical inspections, geometries, headlamp repair and adjustment.
Choice of installation: free-standing or built-in for light commercial vehicles.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 6352T - SCISSOR LIFT 5.5T AUXILIARY LIFT 4.5T TECH CONTROL IN-GROUND
Characteristics
| Item name | SCISSOR LIFT 5T AUXILIARY LIFT 3.5T PACK. 1/1 |
|---|---|
| Bar code | 3701555308470 |
| Introduction |
Particularly suitable for technical inspections, geometries, headlamp repair and adjustment. Choice of installation: free-standing or built-in for light commercial vehicles. |
| Text | Maximum safety: 1 thrust cylinder with secure mechanical position-holding (rack and pinion) to stabilize position. The safety device is pneumatically powered. |
| Specifications |
Specifications : - lifting height: 350-2155mm - lifting time: +/- 65s - lowering time: +/- 60s - track width/length: 625/5400mm - system synchronization: photo cell - drive power: 2.6kw - drive voltage: (3 ~) 400/50 V/Hz - made in Europe - Epoxy paint |
| Contents |
Contents : - shifting plates - pivoting platform slots - auxiliary lift 3500 kg, lift height 425mm with ramp extension L: 1430mm to 2050mm - guide rails for lifting crossbar |
| Options |
Options: - EG8380: pair of turntables - PE0003: 6-movement front sliding plate for technical control - PE7000: 3T pneumatic lifting crossbar - PE0008: access ramp extension 1600mm |
| Advice |
Please contact us for installation and start-up. Within the framework of the warranty, installation and start-up must be carried out by a professional. Transportation costs not included. |
| Warranty period | 2 years |
| Power | 2600W |
| Voltage | 400V |
| Product weight (kg) | 2,250 kg |
| Maximum load (T) | 5 T |
| Tariff code | Tariff Equipment (TE) |
