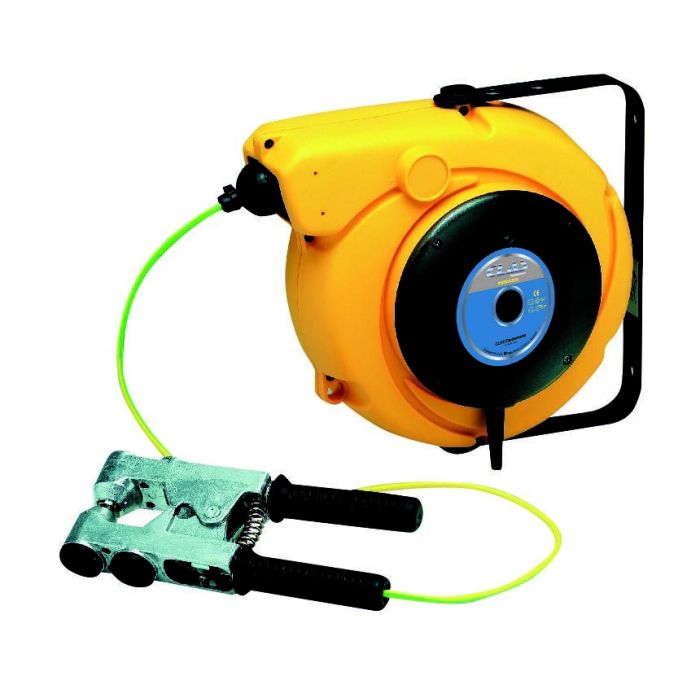

Reel 1x6mm2 for earthing
SKU
OE 0501
793 €
VAT Excl.
€0.77
Characteristics
| Item name | Reel 1x6mm2 for earthing |
|---|---|
| Bar code | 3700461419256 |
| Product highlight | ATEX 94/9/CE explosion-proof clamp |
| Specifications |
Reel Specifications: - The reel is not explosion-proof - IP42 - Rated current: 20A - Insulation voltage: 2.5 kV - 1x6 mm² H05V-F single-conductor cable, yellow/green - Stop mechanism every 50 cm Plier specifications: - Plier version II2GD Ex d IIC T6-Ex tD A21/IP65/Temp 85°C - Complies with standards: EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1 - CESI 03 ATEX 94/9/EC approval - Application: Explosive atmospheres containing Group IIC gases and flammable powders - Equipped with a tear-resistant opening mechanism - Reliable, robust, easy to handle, and simple to use - Insulation voltage: 3 kV - Rated current: 10 A - Opening: 3 to 20 mm - Dimensions: 250 x 110 x 35 mm |
| Warranty period | 2 years |
| Power | 1800W |
| Cable length | 14 m |
| Product weight (kg) | 6.50 kg |
| Tariff code | Tariff Normal (TN) |
| Warranty Procedure | DIAGNOSTIC |
