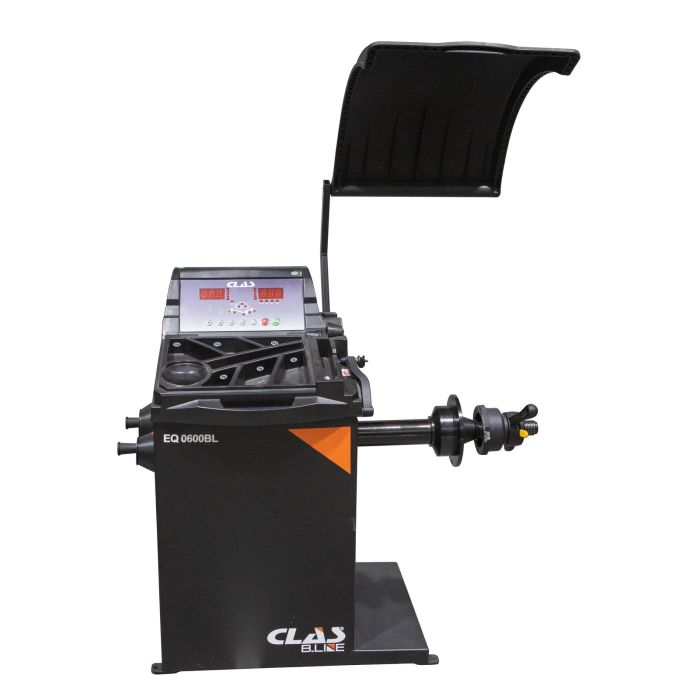

MANUAL MOTORIZED WHEEL BALANCER LED SCREEN
SKU
EQ 0600BL
Product values
View all features
Wheel balancer designed for dynamic or static balancing of VL-VUL-4X4 wheels. The advantage of this machine is its modern, ergonomic design. The intuitive calibration system makes work easier and improves balancing accuracy. The machine is equipped with an LED display. Semi-automatic input of offset and diameter parameters.
1,399 €
VAT Excl.
€3.17
Characteristics
| Item name | MANUAL MOTORIZED WHEEL BALANCER LED SCREEN |
|---|---|
| Bar code | 3701555310039 |
| Introduction | Wheel balancer designed for dynamic or static balancing of VL-VUL-4X4 wheels. The advantage of this machine is its modern, ergonomic design. The intuitive calibration system makes work easier and improves balancing accuracy. The machine is equipped with an LED display. Semi-automatic input of offset and diameter parameters. |
| Text |
Features : - automatic cycle - multifunction keys - static and dynamic program (2 planes) in a single run - 6 dynamic programs and one static program - self-calibration - self-diagnosis: fault code - simultaneous display of weights and mass positions - measurement accuracy: ±1g - display accuracy: 5g |
| Product highlight | Multiple programs |
| Specifications |
Specifications: - power supply: 240V-50Hz - motor power: 180W - dimensions open housing: 880x980x1420mm - LED display - maximum wheel weight: 65kg - minimum rim diameter: 10 inches - max rim diameter: 24 inches - rim width: from 1 to 20 inches - manual measurement of 3 parameters: offset-diameter-width - safety housing - rotation speed: 200 rpm - shaft: L.210mm-Ø40mmx4mm - compartmentalized tray for cones and weights - 4 storage supports - noise level <70dB - weight: 87kg |
| Contents |
Supplied with: - EQ6521BL: 4 cones from 42 to 137mm Ø40mm - 12mm hexagonal wrench - SA8305: rim width compass - 100g calibration weight - OC8034: multifunction weight clamp - EQ6404BL: Ø40x4mm quick nut with bowl/joint/compression ring |
| Advice |
For installation and commissioning, please contact us. All our balancing machines are delivered factory calibrated. |
| Warranty period | 2 years |
| Power | 80W |
| Voltage | 240V |
| More | Products with electrical plug |
| Product weight (kg) | 87 kg |
| Tariff code | Tariff Equipment (TE) |
| Product range | B-Line |
| Warranty Procedure | INTERVENTION |
