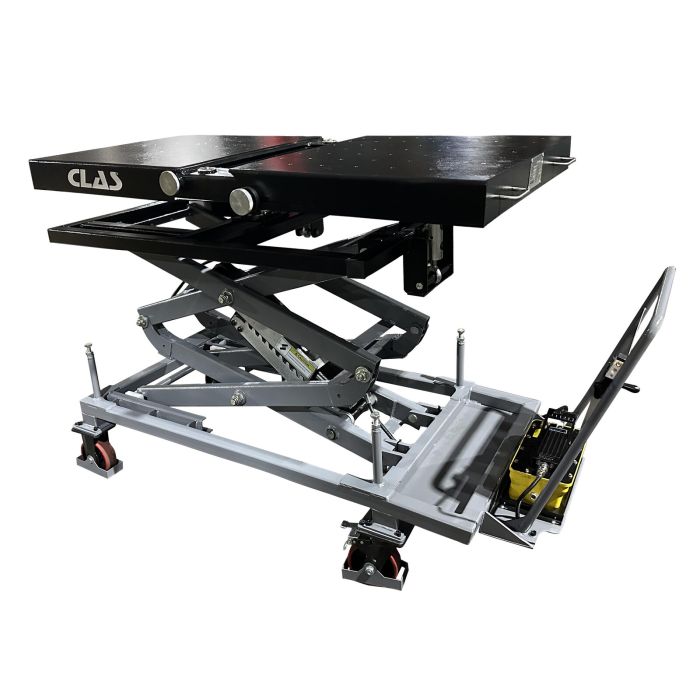

LIFTING TABLE 1200kg FOR EV BATTERY AND HEAVY ORGANS
SKU
OH 1201
Product values
View all features
This table is specially designed for the precise removal and re-installation of heavy components up to 1.2T max load (electric vehicle battery and/or powertrain).
Versatile, it can be adapted to all your needs thanks to its numerous settings and optional supports.

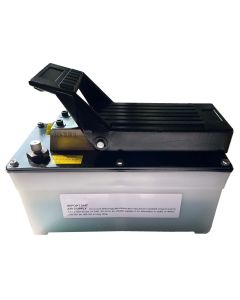

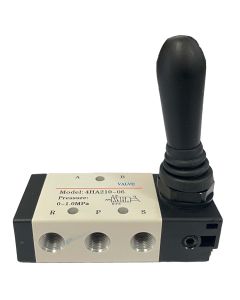

A hydropneumatic control system enables effortless, fast and precise height adjustment.
Descent is secured by a "deadman" function requiring 2 simultaneous actions by the operator. In the event of a problem involving the operator, this function is automatically stopped. The platform is fully mobile in relation to its frame, and features 96 M10x1.5 drilled and tapped points, evenly distributed to accommodate various accessories (available on request).
4,450 €
VAT Excl.
Characteristics
| Item name | LIFTING TABLE 1200kg FOR EV BATTERY AND HEAVY ORGANS |
|---|---|
| Bar code | 3701555318424 |
| Text |
This table is specially designed for the precise removal and re-installation of heavy components up to 1.2T max load (electric vehicle battery and/or powertrain). Versatile, it can be adapted to all your needs thanks to its numerous settings and optional supports. A hydropneumatic control system enables effortless, fast and precise height adjustment. Descent is secured by a "deadman" function requiring 2 simultaneous actions by the operator. In the event of a problem involving the operator, this function is automatically stopped. The platform is fully mobile in relation to its frame, and features 96 M10x1.5 drilled and tapped points, evenly distributed to accommodate various accessories (available on request). |
| Product highlight | Precision and maneuverability |
| Specifications |

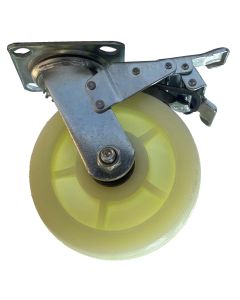

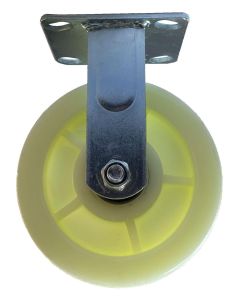

Specifications: - length: 1860mm - width: 790mm - minimum platform height: 710mm - maximum tray height: 2090mm - minimum tray length: 1380mm - maximum platter length: 1580mm - rise time: +/-50s - lowering time: +/-30s - 4 swivel castors with brakes: 130mm - 4 handles positioned around the table for optimum ease of use when adjusting the load at rest. Adjustments: - the table top unfolds into three lockable positions for a maximum surface area of 1560mmx730mm. It is tapped M10x1.5 to accommodate various accessories (available on request). - the table's flatness can be adjusted at 2 points for high positioning accuracy - the table top can be moved in translation and pivoted for greater precision when repositioning elements. |
| Options |
Option: - screwable supports (ex: CO1160) |
| Warranty period | 2 years |
| Length (mm) | 1,580 mm |
| Width | 790 mm |
| Max. height | 2,090 mm |
| Min. height | 710 mm |
| Maximum load (T) | 1.20 T |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | DIAGNOSTIC |
| Customer benefit |
Supports for fork-lift trucks. Suitable for precision use. |
