HYDRAULIC PRESS TOOL SET 18T
SKU
OM 9386
Product values
View all features
Universal tool for silent-blocks, ball joints, bearings or sealing rings.
1,999 €
VAT Excl.
Characteristics
| Item name | HYDRAULIC PRESS TOOL SET 18T |
|---|---|
| Bar code | 3700461455223 |
| Introduction | Universal tool for silent-blocks, ball joints, bearings or sealing rings. |
| Text |

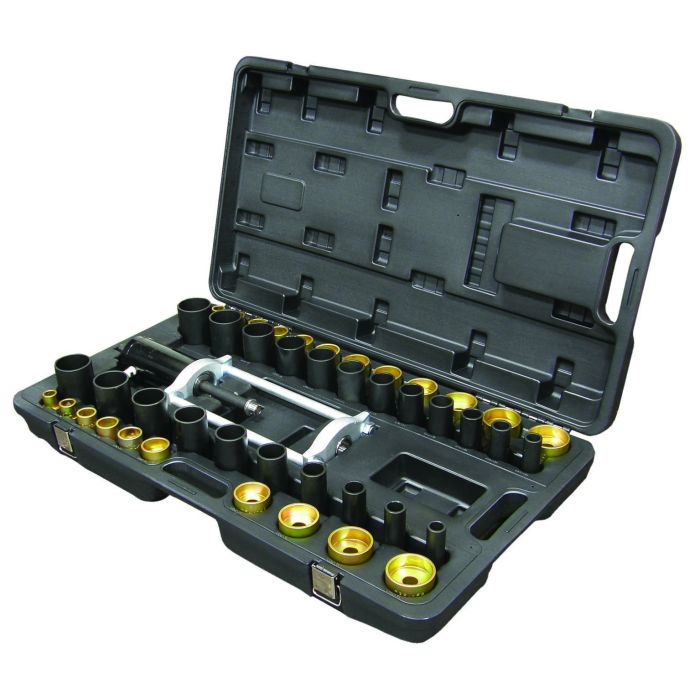

This hydraulic extraction press kit enables fast, efficient and precise disassembly and reassembly for safe working. Without having to remove chassis components such as the suspension arm or running gear, it allows you to work directly on the vehicle, saving considerable time and labor. The OM 9386 features short (40mm) and long (110mm) pressure bushes of different diameters (26 to 60mm) and an 18T thrust cylinder for easy extraction of parts to be replaced. |
| Specifications |
Specifications: - inside length (press frame): 290mm - inside width (press frame): 110mm - maximum press frame load: 14T - maximum cylinder load: 18T |
| Contents |

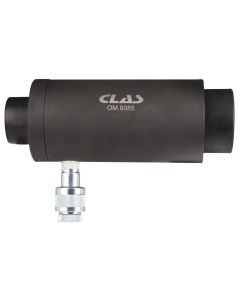

Contents: - SA9382: hydraulic extraction press with support cups - SA9389: M20x350 threaded push rod (with O-ring for locking bushes) - SA9383: thrust adapter - set of 22 short sockets 40mm - set of 22 long sockets 110mm - plastic case - SA4215: 1/4"-3/8" interface fitting |
| Warranty period | 2 years |
| Maximum load (T) | 18 T |
| Tariff code | Tariff Normal (TN) |
| Warranty Procedure | EASY |
