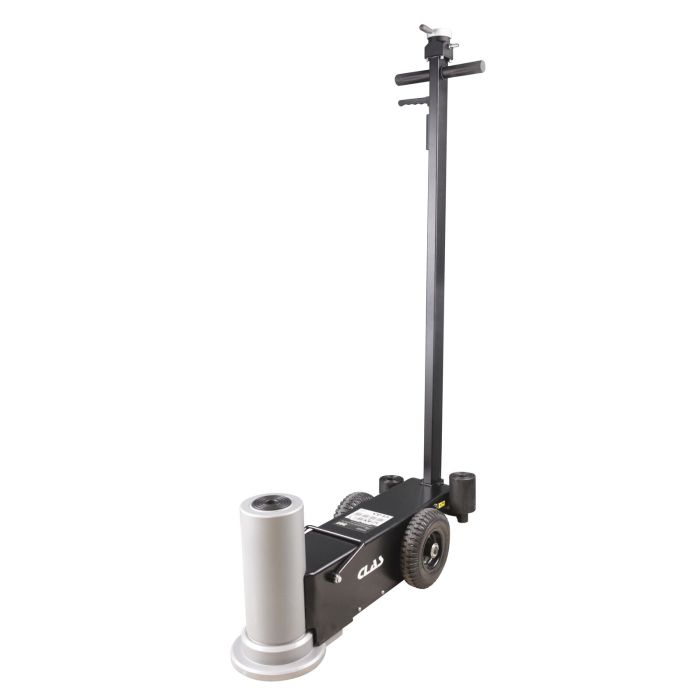

High lift air hydraulic jack 30T
SKU
OH 9032N
2,690 €
VAT Excl.
Characteristics
| Item name | High lift air hydraulic jack 30T |
|---|---|
| Bar code | 3700461496950 |
| Product highlight | Maintaining power at high elevations |
| Specifications |
Specifications: - Allows for quick and effortless operation - Overload protection system - Equipped with a descent speed control valve for added safety - Long T-handle for easy positioning of the jack under the vehicle - 3 positions: 90-45-0° metal locking system - Min. height: without extensions 360 mm / with extensions 505 mm - Max. height: without extensions 627 mm / with extensions 772 mm - Length: 840 mm - Width: 282 mm - Extensions: 45–100 mm - Supply pressure: 9–12 bar - Weight: 87 kg |
| Applications | Applications: Public works, agricultural machinery, military machinery, trains. |
| Warranty period | 2 years |
| Length (mm) | 840 mm |
| Width | 282 mm |
| Product weight (kg) | 87 kg |
| Max. height | 772 mm |
| Min. height | 360 mm |
| Jack type | Hydropneumatic |
| Maximum load (T) | 30 T |
| Tariff code | Tariff Normal (TN) |
| Composition of nomenclature |
1 x OH 9032-1 - 30T high-lift hydropneumatic jack 1 x OH 9032-2 - 30T high-lift hydropneumatic jack handle |
| Warranty Procedure | NO |
