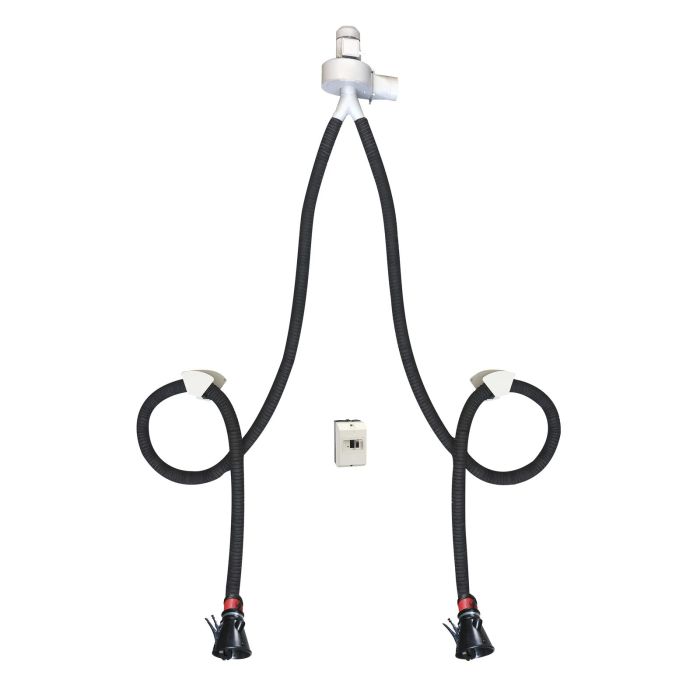

Gas suction unit double descent 2x5m Ø100mm 240V
SKU
AG 0021
Product values
View all features
Specially designed for exhaust extraction in light vehicle workshops.
Suitable for wall or roof extraction, depending on accessories.
2,469 €
VAT Excl.
€4.60
Characteristics
| Item name | Gas suction unit double descent 2x5m Ø100mm 240V |
|---|---|
| Bar code | 3701555301105 |
| Introduction |
Specially designed for exhaust extraction in light vehicle workshops. Suitable for wall or roof extraction, depending on accessories. |
| Text | The equipment enables you to work in a healthy environment, without inhaling exhaust fumes and in compliance with workplace safety standards. |
| Product highlight | Easy to install |
| Specifications |

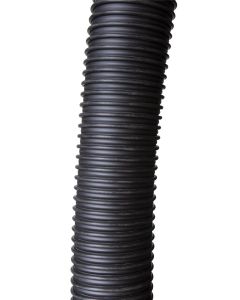

Specifications: - RAL 7040 painted steel frame - Ø100mm hose (-40° to +200°) made of high-temperature vulcanized EPDM fabric. The hose structure is completely crush-resistant, maintains flexibility over time, and retains its suction specifications - Power supply: 240V single-phase - Motor power: 1 cv, 0.75 kW, 50 Hz, 2.9 A - Maximum airflow: 450 m³/h - Noise level: 66 dB - Thermal protection switch - Rubber exhaust nozzle with a 160mm opening, equipped with a mounting clamp and an anti-intrusion isolation flap |
| Warranty period | 2 years |
| Vehicle type | LV |
| Decibel level | 66 dB |
| Voltage | 240V |
| Diameter (mm) | 100 mm |
| Air flow rate | 2X450 |
| Tariff code | Tariff Equipment (TE) |
| Type of gas extraction system | Fixed |
| DPF compatible | NO |
| Hose length (m) | 2 x 5m |
| Hose diameter (mm) | 100mm |
| Max. hose temperature (°C) | 200°C |
