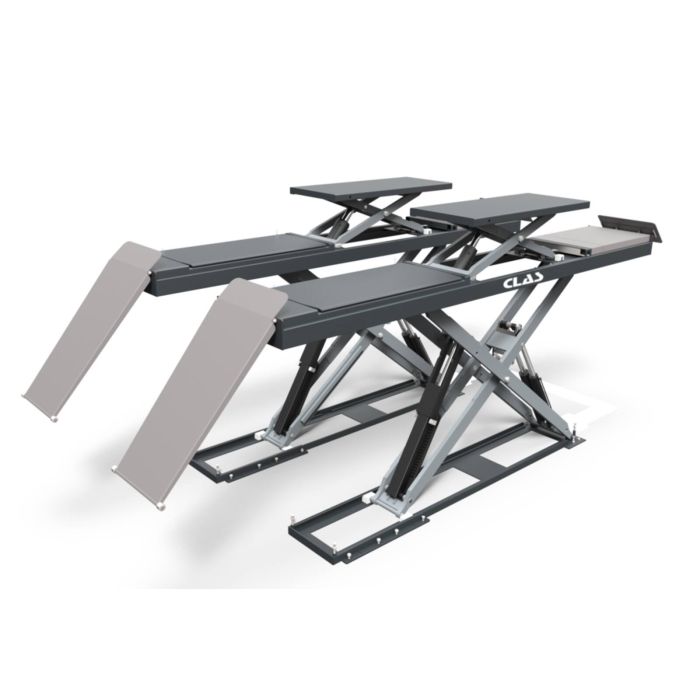

EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T
SKU
PE 6006T
Product values
View all features
Particularly suitable for technical inspections, geometries, headlamp repair and adjustment.
Choice of installation: free-standing or built-in for light commercial vehicles.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 6250T - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5T ON-GROUND
Characteristics
| Item name | EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T |
|---|---|
| Bar code | 3701555307190 |
| Introduction |
Particularly suitable for technical inspections, geometries, headlamp repair and adjustment. Choice of installation: free-standing or built-in for light commercial vehicles. |
| Text |
Working comfort: quick and easy vehicle lift on the extra-low 220mm lift. Maximum safety: 2 push cylinders, 1 cylinder with mechanical safety position (rack) to stabilize position. |
| Product highlight | Extra flat 220mm |
| Specifications |
Specifications : - lifting height: 220-1860mm - lifting time: +/- 50s - lowering time: +/- 60s - track width/length: 620/5030mm - system synchronization: photo cell - drive power: 2.2 kw - drive voltage: (3 ~) 400/50 V/Hz - made in Europe - Epoxy paint |
| Options |
Options: - PE7000: 3T pneumatic lifting crossbar - EG8380: pair of turntables - PE0004: front slip plates |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Maximum load (T) | 5.50 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6006T-1 - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T PACK. 1/5 1 x PE 6006T-2 - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T PACK. 2/5 1 x PE 6006T-3 - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T PACK. 3/5 1 x PE 6006T-4 - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T PACK. 4/5 1 x PE 6006T-5 - EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5.5T PACK. 5/5 |
