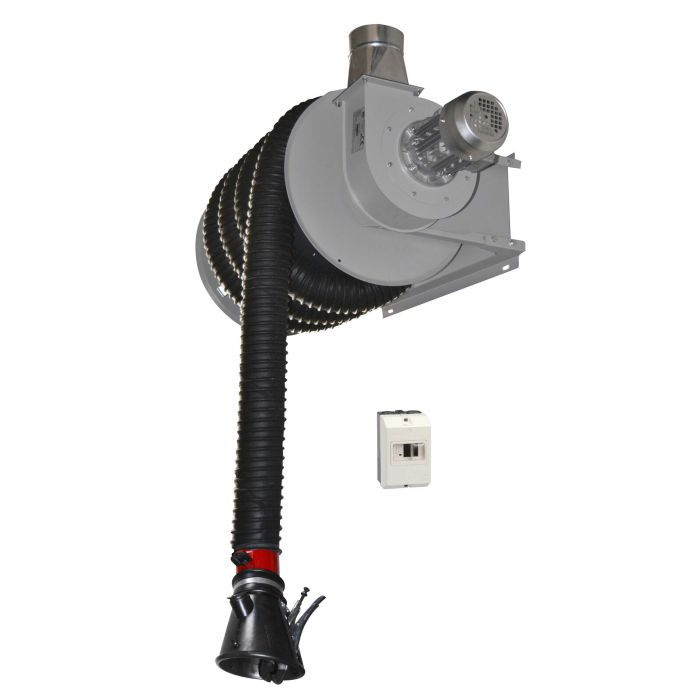

Exhaust gas on roller 15m Ø100mm 400V
SKU
AG 0010
Product values
View all features
Specially designed for exhaust extraction in light vehicle workshops.
4,485 €
VAT Excl.
€4.60
Characteristics
| Item name | Exhaust gas on roller 15m Ø100mm 400V |
|---|---|
| Bar code | 3701555300993 |
| Introduction | Specially designed for exhaust extraction in light vehicle workshops. |
| Text |
This spring-loaded mechanical winder, complete with extraction fan, can be installed on the ceiling or wall, while maintaining the same performance. The equipment allows you to work in a healthy environment, without inhaling exhaust fumes and in compliance with workplace safety standards. Hose: anti-crushing structure, maintains flexibility over time thanks to the robust nylon spiral with a very tight pitch. This feature prevents the hose from stretching when pulled, and from crushing in high-stress situations. Its smooth interior design guarantees maximum suction efficiency in m3. Directly coupled electric Engine, statically and dynamically balanced impeller to limit friction and vibration and reduce energy consumption. Inlet and outlet flanges dimensioned for optimum suction capacity. Support feet for wall or ceiling mounting are included. |
| Specifications |
Specifications: - Galvanized steel frame - Epoxy paint (Gray RAL 7040) - 15 m of Ø100 mm hose (-40° to +200°) made of high-temperature vulcanized EPDM fabric on both sides. - discharge: Ø125 mm - power supply: 400 V 3-phase - motor power: 0.5 cv, 0.37 kW, 50 Hz, 1.0 A - maximum flow rate: 450 m³/h - Noise level: 66 dB - Thermal protection switch - Reel equipped with a ratchet, an end-of-travel stop with an anti-slip system - Exhaust nozzle equipped with an anti-intrusion grille, a clamp, a gas intake shut-off flap, and an access point for the opacimeter probe - Weight: 43 kg Many options available—please contact us. |
| Warranty period | 2 years |
| Vehicle type | LV |
| Decibel level | 66 dB |
| Voltage | 400V |
| Product weight (kg) | 43 kg |
| Diameter (mm) | 100 mm |
| Air flow rate | 450 |
| Tariff code | Tariff Equipment (TE) |
| Type of gas extraction system | Fixed |
| DPF compatible | NO |
| Hose length (m) | 12m |
| Hose diameter (mm) | 100mm |
| Max. hose temperature (°C) | 200°C |
