Exhaust gas on HGV reel 15m Ø125mm 400V
SKU
AG 0014
Product values
View all features
Specially designed for exhaust extraction in light vehicle workshops.
4,560 €
VAT Excl.
€4.60
Characteristics
| Item name | Exhaust gas on HGV reel 15m Ø125mm 400V |
|---|---|
| Bar code | 3701555301037 |
| Introduction | Specially designed for exhaust extraction in light vehicle workshops. |
| Text |

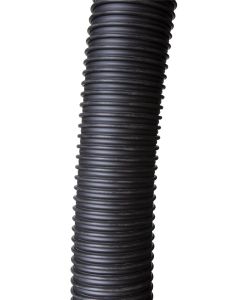

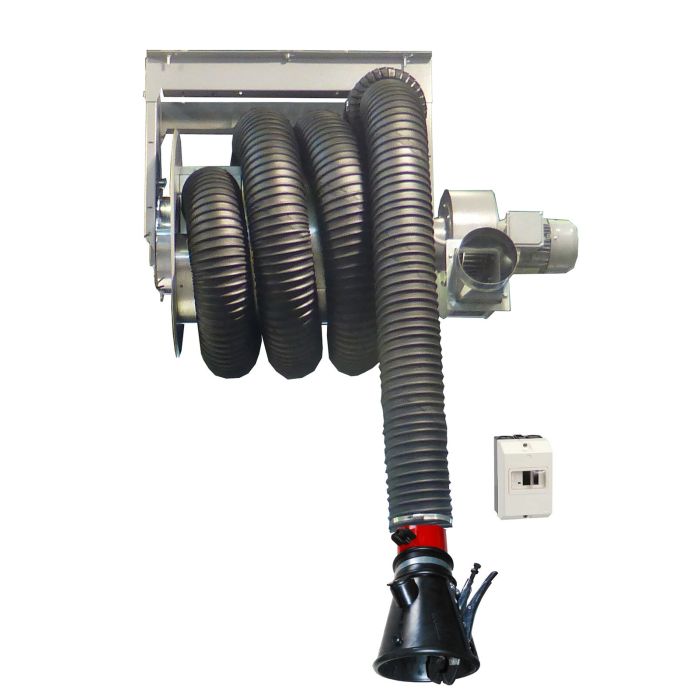

This spring-loaded mechanical winder, complete with extraction fan, can be installed on the ceiling or wall, while maintaining the same performance. The equipment allows you to work in a healthy environment, without inhaling exhaust fumes and in compliance with workplace safety standards. Hose: anti-crushing structure, maintains flexibility over time thanks to the robust nylon spiral with a very tight pitch. This feature prevents the hose from stretching when pulled, and from crushing in high-stress situations. Its smooth interior design guarantees maximum suction efficiency in m3. Directly coupled electric Engine, statically and dynamically balanced impeller to limit friction and vibration and reduce energy consumption. Inlet and outlet flanges dimensioned for optimum suction capacity. Support feet for wall or ceiling mounting are included. |
| Specifications |
Specifications: - Galvanized steel frame - Epoxy paint (gray RAL 7040) - 15 m of Ø125 mm hose (-40° to +200°) made of high-temperature vulcanized EPDM fabric on both sides. - discharge: Ø160 mm - power supply: 400 Tri - motor power: 1.0 cv, 0.75 kW, 50 Hz, 1.7 A - maximum airflow: 700 m³/h - Noise level: 68 dB - Thermal protection switch - Reel equipped with a ratchet, an end-of-travel stop with an anti-slip system - Exhaust nozzle equipped with an anti-intrusion grille, a clamp, a gas intake shut-off flap, and an access point for the opacimeter probe - Weight: 43 kg Many options available—please contact us. |
| Warranty period | 2 years |
| Decibel level | 68 dB |
| Voltage | 400V |
| Product weight (kg) | 43 kg |
| Diameter (mm) | 125 mm |
| Air flow rate | 700 |
| Tariff code | Tariff Equipment (TE) |
| Type of gas extraction system | Fixed |
| DPF compatible | NO |
| Hose length (m) | 12m |
| Hose diameter (mm) | 125mm |
| Max. hose temperature (°C) | 200°C |
