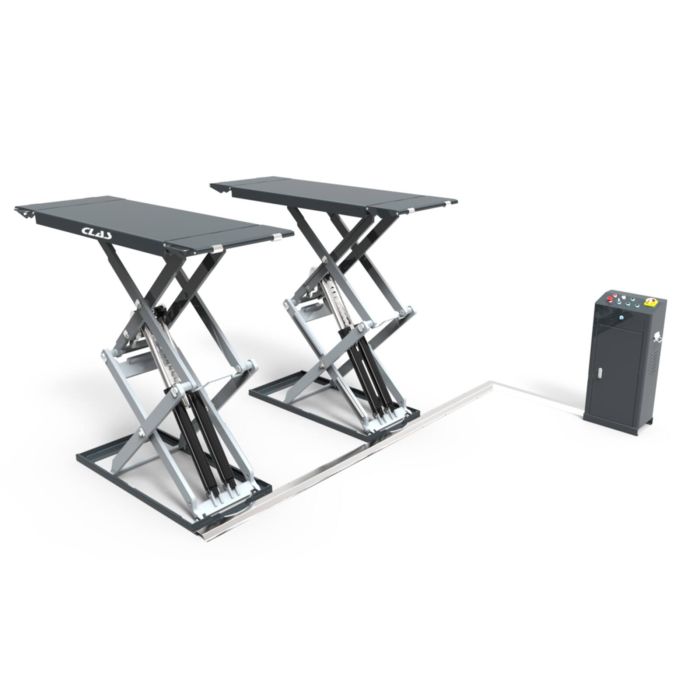

DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T
SKU
PE 6005T
Product values
View all features
Particularly suited to paint, bodywork, brake and tire service activities.
Choice of installation: free-standing or built-in.
Price upon request
This product is no longer listed with us
Characteristics
| Item name | DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T |
|---|---|
| Bar code | 3701555307176 |
| Introduction |
Particularly suited to paint, bodywork, brake and tire service activities. Choice of installation: free-standing or built-in. |
| Text |
Easy access: 100mm lowered floor passage, lockable access ramps to extend platforms. Full power lift at lowest point 100mm. Work comfort: scissor control by dual hydraulic master-slave systems; photocell synchronization control, with mechanically locked position (rack) supplied with air, secures position for precise intervention, gearbox assembly, nut alignment... |
| Product highlight | Mechanical safety position hold |
| Specifications |
Specifications : - lifting height: 100-1950mm - lifting time: +/- 40s - lowering time: +/- 35s - track width/length: 650/1420-2000mm - system synchronization: photo cell - floor width/length required for installation: 2000/2030mm - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - maximum safety: emergency lowering system in the event of power failure, CE-standard anti-crushing intermediate stop and audible signal - made in Europe |
| Contents | Supplied with 4 pads h.60mm |
| Options |
Options : - PE0001: SUV kit for scissor lifts |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 860 kg |
| Maximum load (T) | 3 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6005T-1 - DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T PACK. 1/2 1 x PE 6005T-2 - DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T PACK. 2/2 |
