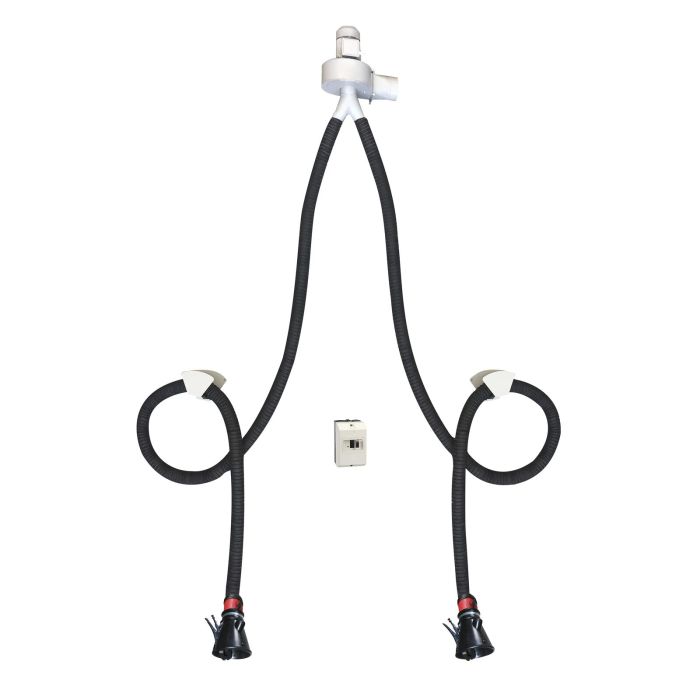

DOUBLE EXTRACTOR GROUP 2x5m Ø100mm 400V
SKU
AG 0022
Product values
View all features
Specially designed for exhaust extraction in light vehicle workshops.
Suitable for wall or roof extraction, depending on accessories.
2,280 €
VAT Excl.
€3.71
Characteristics
| Item name | DOUBLE EXTRACTOR GROUP 2x5m Ø100mm 400V |
|---|---|
| Bar code | 3701555301112 |
| Introduction |
Specially designed for exhaust extraction in light vehicle workshops. Suitable for wall or roof extraction, depending on accessories. |
| Text | The equipment enables you to work in a healthy environment, without inhaling exhaust fumes and in compliance with workplace safety standards. |
| Product highlight | Easy to install |
| Specifications |
Specifications: - painted steel structure ral 7040 - Ø100mm hose (-40° to +200°) in high-temperature EPDM vulcanized fabric. hose structure is completely anti-crushing, maintains flexibility over time, and retains suction characteristics - discharge: Ø125mm - power supply: 400V Tri - motor power: 1hp, 0.75KW, 50HZ, 2.9A - max flow: 450m3/h - noise level: 66dB - thermal protection switch - rubber nozzles, 160mm opening, equipped with clamp and anti-intrusion isolation valve |
| Warranty period | 2 years |
| Vehicle type | LV |
| Decibel level | 66 dB |
| Voltage | 400V |
| Diameter (mm) | 100 mm |
| Air flow rate | 2X450 |
| Tariff code | Tariff Equipment (TE) |
| Type of gas extraction system | Fixed |
| DPF compatible | NO |
| Hose length (m) | 2 x 5m |
| Hose diameter (mm) | 100mm |
| Max. hose temperature (°C) | 200°C |
