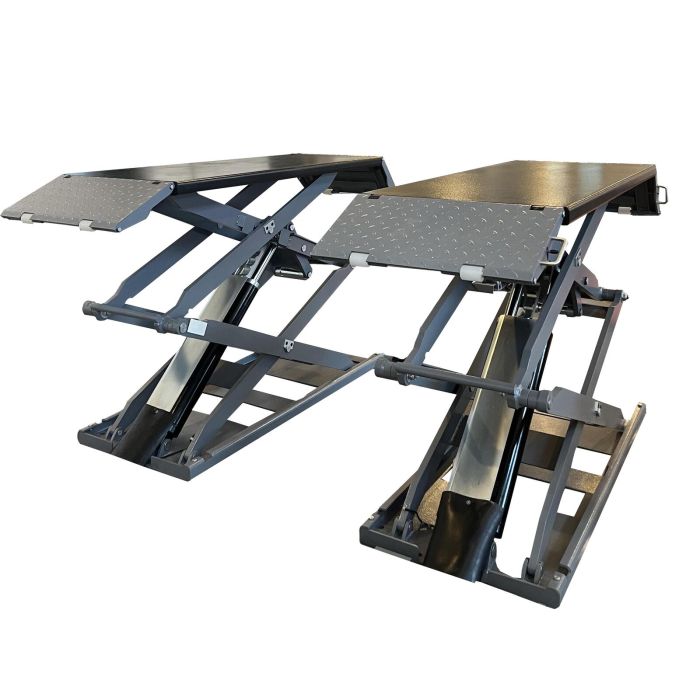

Carrossier 3.6T 160cm Extra-Low Scissor Lift (free-standing/built-in)
SKU
PE 6236T160
Product values
View all features
Particularly well-suited for painting, body repair, and quick-service operations.
Installation options: free-standing or built-in.
Easy access: low ground clearance of 110 mm, lockable access ramps to extend the platforms.
Maximum comfort and safety: controlled by a dual master-slave hydraulic safety system combined with a rack-and-pinion mechanism for sustained position holding.
Body shop lift with 160 cm locking height, CARSAT-eligible
5,799 €
VAT Excl.
Characteristics
| Item name | Carrossier 3.6T 160cm Extra-Low Scissor Lift (free-standing/built-in) |
|---|---|
| Bar code | 3701555330747 |
| Text |
Particularly well-suited for painting, body repair, and quick-service operations. Installation options: free-standing or built-in. Easy access: low ground clearance of 110 mm, lockable access ramps to extend the platforms. Maximum comfort and safety: controlled by a dual master-slave hydraulic safety system combined with a rack-and-pinion mechanism for sustained position holding. Body shop lift with 160 cm locking height, CARSAT-eligible |
| Product highlight | Can be used as a free-standing unit or built-in |
| Specifications |
Specifications: - Lifting height: 110–1,600 mm - Width/length of bearing paths: 630/1,480–2,090 mm - Synchronization system: photocell - Required air pressure: 6–8 bar. - control panel - drive power: 3 kW - drive voltage: (3-phase + neutral) 400 V/50 Hz - Emergency descent system in case of power failure - Intermediate stop 20 cm above the floor for user safety and an anti-crushing audible alarm - Comes with 4 bumpers |
| Advice |
For installation and setup, please contact us. Under the warranty, installation and setup must be performed by a professional. Shipping costs not included. |
| Warranty period | 2 years |
| Power | 3000W |
| Voltage | 400V |
| Length (mm) | 2,090 mm |
| Width | 2,110 mm |
| Height | 960 mm |
| Product weight (kg) | 904 kg |
| Max. height | 1,600 mm |
| Min. height | 110 mm |
| Maximum load (T) | 3.60 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6236T-1 - Double scissor lift 2cylinder 400V 3.6T low profile on/in-ground 1/3 1 x PE 6236T-2 - Double scissor lift 2cylinder 400V 3.6T low profile on/in-ground 2/3 1 x PE 6236T-3 - Double scissor lift 2cylinder 400V 3.6T low profile on/in-ground 3/3 3 x SA 3012 - Hv46 hydraulic oil 5l |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Comes with HV46 hydraulic oil and a floor mounting kit |
| Pneumatic power supply required | YES |
| Circuit breaker/Cable section | 16A D tetra / 5x2.5mm² (3PH + N + T) |
| Soil quality | >20cm Béton C20/25 |
