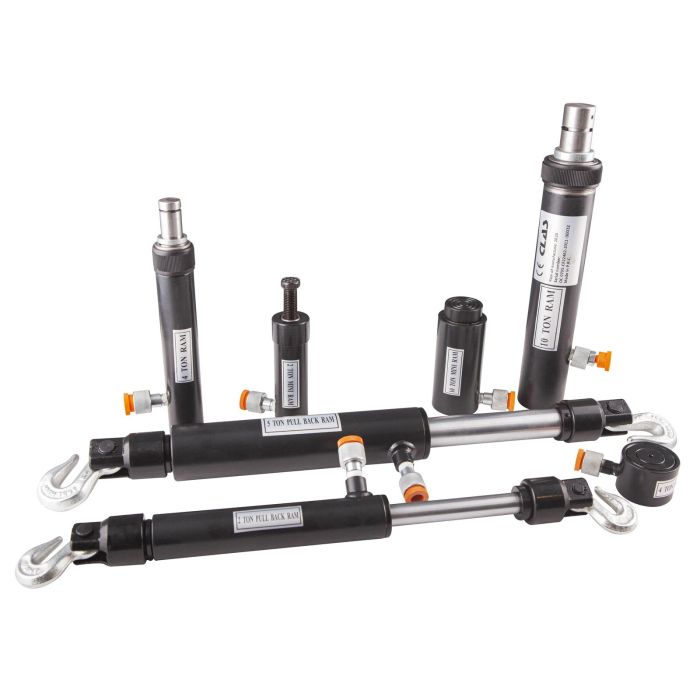

Bodywork cylinder set pusher/puller 1/4"
SKU
OC 0705
Product values
View all features
Contents:
- SA0704: 2-ton pusher cylinder, min. stroke 132 mm / max. stroke 189 mm

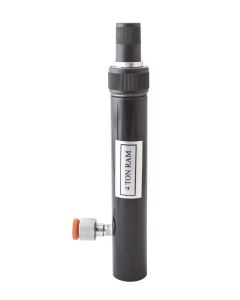

- SA0706: 4-ton pusher cylinder, min. stroke 275 mm / max. stroke 405 mm
- SA0703: 4T mini push cylinder, min. stroke 42 mm / max. stroke 58 mm
- SA0705: 10T mini push cylinder, min. stroke 132 mm / max. stroke 189 mm
- SA0707: 10-metric-ton push cylinder, min. height 350 mm / max. height 500 mm
- SA0709: 2-metric-ton pull cylinder, max. length 550 mm / min. length 422 mm
- SA0708: 5-metric-ton pull cylinder, max. length 650 mm / min. length 520 mm
520 €
VAT Excl.
Characteristics
| Item name | Bodywork cylinder set pusher/puller 1/4" |
|---|---|
| Bar code | 3700461447440 |
| Specifications |
Specifications: - Threads: 38 x 150 mm, 33 x 150 mm - The end of the 2T cylinder rod unscrews to adjust to a length of 40 mm - The SA 1823 protective cover is compatible with the kit |
| Contents |
Contents: - SA0704: 2-ton pusher cylinder, min. stroke 132 mm / max. stroke 189 mm - SA0706: 4-ton pusher cylinder, min. stroke 275 mm / max. stroke 405 mm - SA0703: 4T mini push cylinder, min. stroke 42 mm / max. stroke 58 mm - SA0705: 10T mini push cylinder, min. stroke 132 mm / max. stroke 189 mm - SA0707: 10-metric-ton push cylinder, min. height 350 mm / max. height 500 mm - SA0709: 2-metric-ton pull cylinder, max. length 550 mm / min. length 422 mm - SA0708: 5-metric-ton pull cylinder, max. length 650 mm / min. length 520 mm |
| Warranty period | 2 years |
| Maximum load (T) | 10 T |
| Tariff code | Tariff Normal (TN) |
| Warranty Procedure | DIAGNOSTIC |
