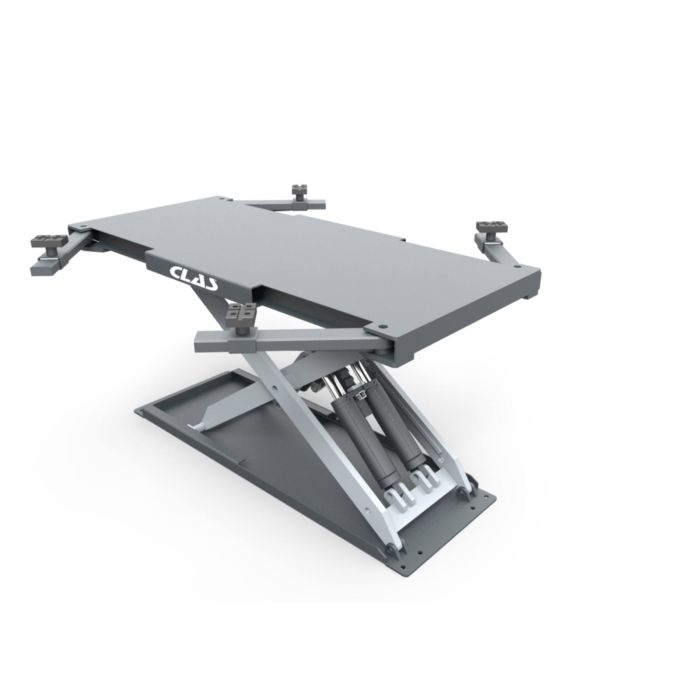

BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T
SKU
PE 8001T
Product values
View all features
Underbody preparation table for bodybuilders, enables the vehicle to be lifted to the desired height for an ergonomic working position, protects against RSI.
Ideal for minor dent removal, underbody work, sanding, painting, etc.
Built-in, electro-hydraulic operation.
Thanks to its minimum height of 125mm, this table is particularly suitable for working on low-profile vehicles.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 8101T - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T ON/IN-GROUND
Characteristics
| Item name | BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T |
|---|---|
| Bar code | 3701555307237 |
| Text |
Underbody preparation table for bodybuilders, enables the vehicle to be lifted to the desired height for an ergonomic working position, protects against RSI. Ideal for minor dent removal, underbody work, sanding, painting, etc. Built-in, electro-hydraulic operation. Thanks to its minimum height of 125mm, this table is particularly suitable for working on low-profile vehicles. |
| Product highlight | Double jack and rack & pinion safety |
| Specifications |
Specifications : - lifting time: +/- 50 s - lowering time: +/- 60 s - working height: 125-1300mm - closed dimension: L. 1960 X l. 880mm - max. open dimension L. 2303 X l. 1668mm - drive power 2.2kW 220bar - drive voltage: (3 ~) 400V/50Hz - air supply 6/8bar - double-cylinder version, with mechanical position-holding safety device (rack) - opening of 4 arms with 120° buffers - made in Europe - Epoxy paint - weight: 880kg |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 540 kg |
| Maximum load (T) | 3 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature | 1 x PE 8001T-1 - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T 1/1 |
