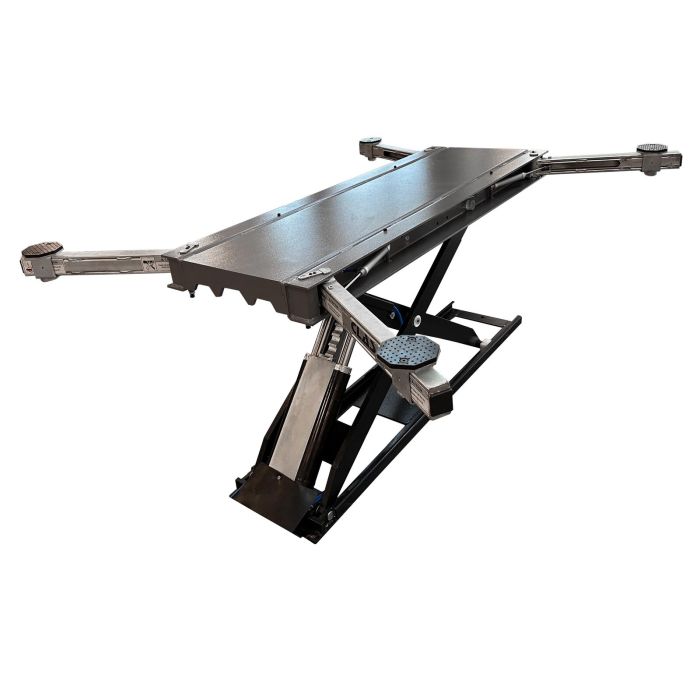

BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T ON/IN-GROUND
SKU
PE 8101T
Product values
View all features
Lifting table, free-standing or built-in, selected by micro-switch in the console.
Underbody preparation table for bodybuilders, enables the vehicle to be lifted to the desired height for an ergonomic working position, protects against RSI.
Ideal for minor dent removal, underbody work, sanding, painting, etc.
Free-standing or built-in, electro-hydraulic operation.
Pneumatic arm opening and closing.
Reversible pad storage on console.
6,999 €
VAT Excl.
€121.62
Characteristics
| Item name | BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T ON/IN-GROUND |
|---|---|
| Bar code | 3701555318196 |
| Text |
Lifting table, free-standing or built-in, selected by micro-switch in the console. Underbody preparation table for bodybuilders, enables the vehicle to be lifted to the desired height for an ergonomic working position, protects against RSI. Ideal for minor dent removal, underbody work, sanding, painting, etc. Free-standing or built-in, electro-hydraulic operation. Pneumatic arm opening and closing. Reversible pad storage on console. |
| Product highlight | Pneumatic arm opening and closing |
| Specifications |
Specifications: - lifting height: 120-1230mm - tray height: 120mm - closed dimension: L. 1840xl. 640mm - max. open dimension l 1837mm - control panel - drive power: 3kw - drive voltage: (3 ~) 400V/50 V/Hz - air supply 6-8bar - double-cylinder version, with mechanical position-holding safety device (rack) - 124° opening of 4 arms with reversible buffers - Epoxy paint - emergency lowering system in case of power failure - intermediate stop at 30 cm from the floor if free-standing and 19 cm if built-in, for user safety and anti-crushing audible signal |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 3000W |
| Voltage | 400V |
| Height | 120 mm |
| Max. height | 1,230 mm |
| Min. height | 120 mm |
| Maximum load (T) | 3 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 8101T-1 - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T 1/4 1 x PE 8101T-2 - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T 2/4 1 x PE 8101T-3 - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T 3/4 3 x SA 3012 - HV46 HYDRAULIC OIL 5L 1 x PE 8101T-4 - BODY REPAIR LIFT TABLE DUAL CYLINDER 400V 3T 4/4 |
| Warranty Procedure | INTERVENTION |
| Customer benefit | Supplied with HV46 hydraulic oil and ground fixing kit |
| Pneumatic power supply required | YES |
| Circuit breaker/Cable section | 16A D / 5x2.5mm2 |
| Soil quality | >20cm Béton C20/25 |
