AUTOMATIC TIRE CHANGER 10"-24" 2 SPEED SYSTEM 400V

SKU

DM 1501

Product values View all features

Automatic tire changer with 2-speed platform and mounting aid (assistance arm). Specially designed for effortless mounting and demounting of all passenger car, commercial vehicle and 4x4 tires. Equipped with articulated roller, disc and shoe devices, this assistance arm will enable you to replace even the most recalcitrant tires.

3,499 ^€ ^{VAT Excl.} €58.19

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	AUTOMATIC TIRE CHANGER 10"-24" 2 SPEED SYSTEM 400V
Bar code	3700461400841
Introduction	Automatic tire changer with 2-speed platform and mounting aid (assistance arm). Specially designed for effortless mounting and demounting of all passenger car, commercial vehicle and 4x4 tires. Equipped with articulated roller, disc and shoe devices, this assistance arm will enable you to replace even the most recalcitrant tires.
Text	Please consult us for installation and commissioning. Under warranty, installation and commissioning must be carried out by a professional.
Product highlight	Ideal for Run Flat or low-profile tires
Specifications	Specifications: - horizontal arm on roller for easy movement - inflator with pressure gauge - maximum tire diameter: 1180mm - max. tire width: 3 to 12 inches - arched platform with anti-pinch safety device - outside rim diameter: 10 to 21 inches - inner rim diameter: 12 to 24 inches - 2 speeds without switch: rotation speed 1: 6.5 rpm rotation speed 2: 13rpm - ergonomic, intuitive pedals - 2-position adjustable bead breaker shovel - operating pressure: 8-10bar - air cleaner and oil lubricator - tubeless inflation safety valve: 3.5bar - noise < 70dB - power supply: 400V-50Hz - power: 0.85-1.1kW - bead breaker power: 2500kg - dimensions: 1900x1580x2000mm
Contents	Supplied with: - SA8902: 5 protective pads for steel heads - SA8903: 5 protective clips for steel heads - SA8904: 1 protection shovel stripper - SA8906: set of 4 aluminum rim protectors - 1 tire changer with aluminum rim protector
Options	Options : - DM1102 : kit montage rapide têtes jantes alu/acier
Warranty period	2 years
Power	1100W
Voltage	400V
Length (mm)	1,900 mm
Width	1,580 mm
Product weight (kg)	315 kg
Tariff code	Tariff Equipment (TE)
Warranty Procedure	INTERVENTION
Pneumatic power supply required	YES
Quick tip videos	Cliquez sur l'opération qui vous intéresse pour voir la vidéo: RÉGLAGE PELLE D'ÉTALONNAGE RÉGLAGE DE LA VITESSE DE LA POTENCE

Downloads

has as After sales service & consumables

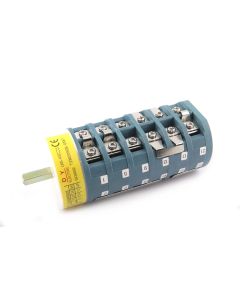

SA 0202 2 SPEED SWITCH

79 ^€ ^{VAT Excl.} €0.14
SA 8901 STEEL HEAD REMOVAL ASSEMBLY

190 ^€ ^{VAT Excl.}
SA 8902 5 PROTECTION PADS

12 ^€ ^{VAT Excl.}
SA 8903 5 PROTECTIVE CLIPS

17 ^€ ^{VAT Excl.}
SA 2079 BEAD BREAKER CYLINDER

189 ^€ ^{VAT Excl.}
SA 2084 TABLE PROTECTION TAB

19 ^€ ^{VAT Excl.}

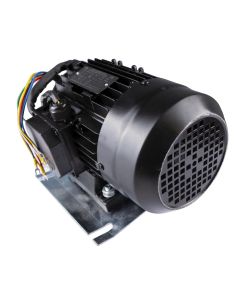

SA 2099 MOTOR 1,1Kw 400V TRIPHASE TIRING MACHINES

688 ^€ ^{VAT Excl.} €2.69

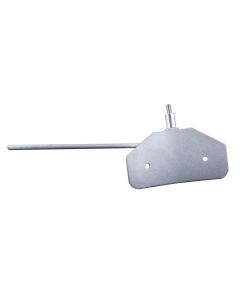

SA 1321 TIRE CHANGER BEAD BREAKER BLADE

74 ^€ ^{VAT Excl.}
SA 1326 TIRE INFLATOR FOR TIRE CHANGERS

146 ^€ ^{VAT Excl.}

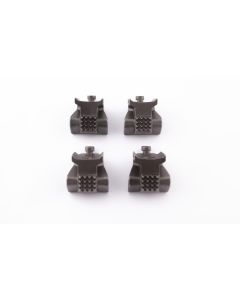

SA 1325 4 PIECE JAW COVER SET

59 ^€ ^{VAT Excl.}
SA 1330 TIRE INFLATOR STATION

98 ^€ ^{VAT Excl.}

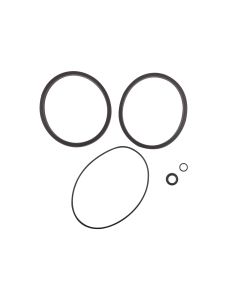

SA 1951 GASKET KIT FOR DETALISINGRAM

58 ^€ ^{VAT Excl.}
SA 2096 TIRE REMOVER GEARBOX

354 ^€ ^{VAT Excl.}
SA 0148 RELEASER PROTECTION PAD

67 ^€ ^{VAT Excl.}
DM 1303 TRANSLUCENT TIRE MOUNTING CREAM 5kg

Price upon request
SA 0149 ARM ASSIST CONTROL BOX

179 ^€ ^{VAT Excl.} €0.05

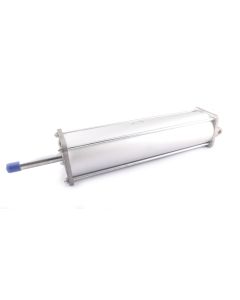

SA 0146 LIFTING CYLINDER HELPER ARM

232 ^€ ^{VAT Excl.}

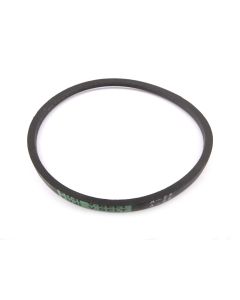

SA 0150 ENGINE BELT

22 ^€ ^{VAT Excl.}

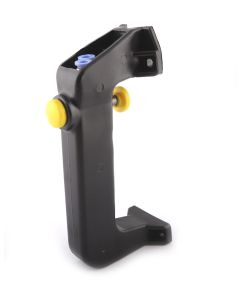

SA 0151 HANDLE CONTROLLING VALVE

44 ^€ ^{VAT Excl.}
SA 0153 AIR PURIFIER OILER

73 ^€ ^{VAT Excl.}
SA 0154 O RING 20x2.65

Price upon request
SA 0162 O RING 65x2.65

Price upon request

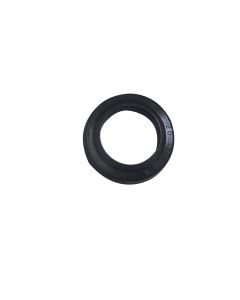

SA 0163 O RING

7 ^€ ^{VAT Excl.}

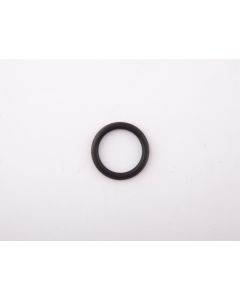

SA 0166 O RING 15.5x2.65

4 ^€ ^{VAT Excl.}

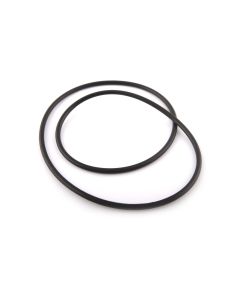

SA 0167 O RING 185x3.55

4 ^€ ^{VAT Excl.}
SA 0170 HINGE ELBOW Ø8mm

22 ^€ ^{VAT Excl.}

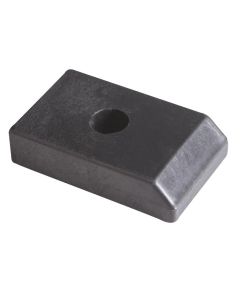

SA 0171 POSITIONING BLOCK HORIZONTAL ARM

8 ^€ ^{VAT Excl.}

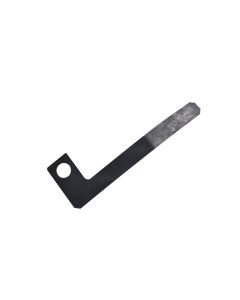

SA 0174 PEDAL SPRING PLATE

75 ^€ ^{VAT Excl.}
SA 0175 HEXAGON LOCK PLATE

64 ^€ ^{VAT Excl.}

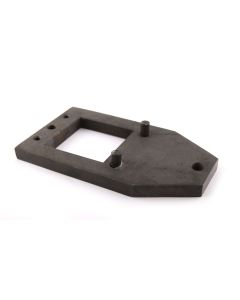

SA 0176 SQUARE LOCK PLATE

95 ^€ ^{VAT Excl.}
SA 0182 LOCKING CYLINDER Y-RING Ø65x8

11 ^€ ^{VAT Excl.}

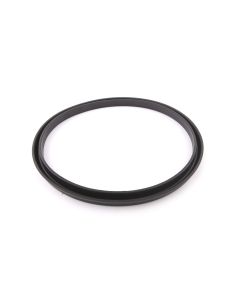

SA 0183 Y-RING

13 ^€ ^{VAT Excl.}

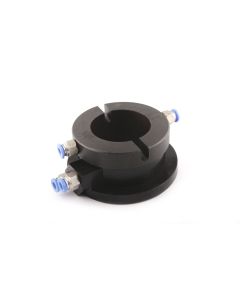

SA 0164 PNEUMATIC TABLE COLLECTOR

81 ^€ ^{VAT Excl.}

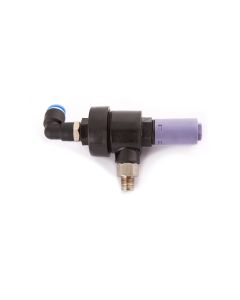

SA 0185 QUICK DEFLATE VALVE ON BEAD BREAKER CYLINDER BODY

45 ^€ ^{VAT Excl.}

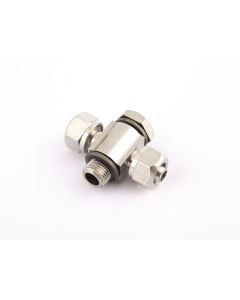

SA 0195 HINGE TEE JACK TURNTABLE Ø8mm

12 ^€ ^{VAT Excl.}

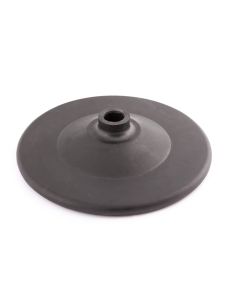

SA 0201 ARM ASSIST ROTATING DISK

68 ^€ ^{VAT Excl.}

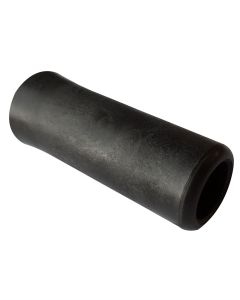

SA 0205 PLASTIC ROLLER FOR ARM ASSIST

24 ^€ ^{VAT Excl.}

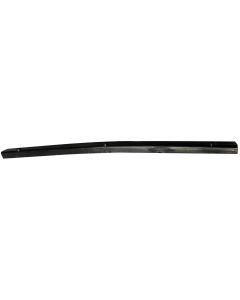

SA 0208 GUIDING PLATES (x4)

29 ^€ ^{VAT Excl.}

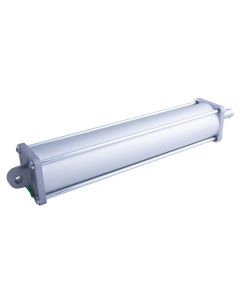

SA 6565 CYLINDER

125 ^€ ^{VAT Excl.}

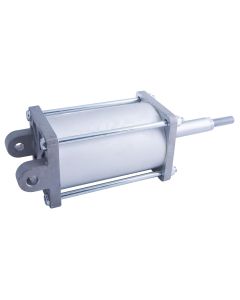

SA 4120 CYLINDER 80x80

112 ^€ ^{VAT Excl.}

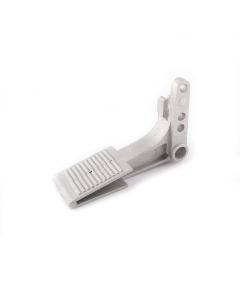

SA 2088 TURNTABLE PEDAL

25 ^€ ^{VAT Excl.}

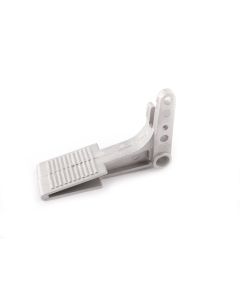

SA 2089 BEAD BREAKER PEDAL

23 ^€ ^{VAT Excl.}

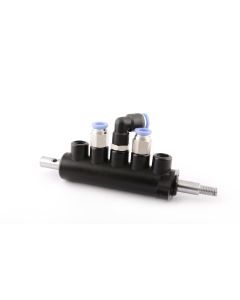

SA 0190 TILT CYLINDER PEDAL CONTROL VALVE ASSEMBLY

57 ^€ ^{VAT Excl.}

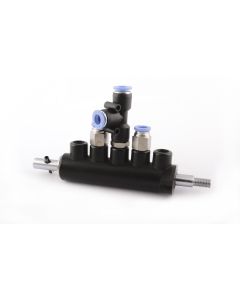

SA 0191 BEAD BREAKER CYLINDER PEDAL CONTROL VALVE ASSEMBLY

57 ^€ ^{VAT Excl.}
SA 1328 HEEL TO ARM ASSIST PUSHER

37 ^€ ^{VAT Excl.}

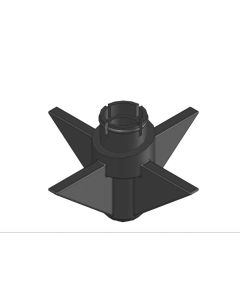

SA 1329 PUSH STAR ON ARM ASSIST

20 ^€ ^{VAT Excl.}
DM 1100 HELPER ARM

1,099 ^€ ^{VAT Excl.}
