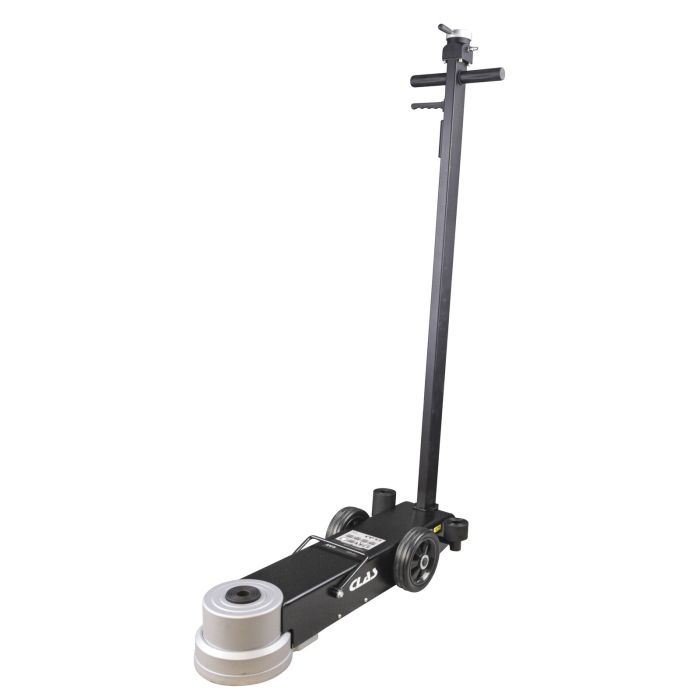

Air hydraulic jack 15-30-50T
SKU
OH 5030N
1,990 €
VAT Excl.
Characteristics
| Item name | Air hydraulic jack 15-30-50T |
|---|---|
| Bar code | 3700461496943 |
| Product highlight | Triple Capacity: 15, 30, and 50 metric tons |
| Specifications |
Specifications: - Overload protection system - Equipped with a descent speed control valve for added safety - 3 stages: 15-30-50T - Long T-handle for easy positioning of the jack under the vehicle - 3-position handle: 90°, 45°, 0° with metal locking mechanism - Min. height: without extensions 150 mm / with extensions 270 mm - Max. height: without extensions 312 mm / with extensions 387 mm - Length: 858 mm - Width: 275 mm - Treated piston for high strength - Extensions: 45–75 mm - Supply pressure: 9–12 bar - Weight: 56 kg |
| Applications | Applications: Trucks, trailers, buses, agricultural machinery, and construction equipment. |
| Warranty period | 2 years |
| Length (mm) | 825 mm |
| Width | 282 mm |
| Product weight (kg) | 56 kg |
| Max. height | 302 mm |
| Min. height | 150 mm |
| Jack type | Hydropneumatic |
| Maximum load (T) | 50 T |
| Tariff code | Tariff Normal (TN) |
| Composition of nomenclature |
1 x OH 5030-1 - Air hydraulic jack 15-30-50T 1 x OH 5030-2 - Air hydraulic jack handle 15-30-50T |
| Warranty Procedure | NO |
| Quick tip videos |
Cliquez sur l'opération qui vous intéresse pour voir la vidéo: |
