STRAIGHTENING BENCH 3M
SKU
PE 8101
Product values
View all features

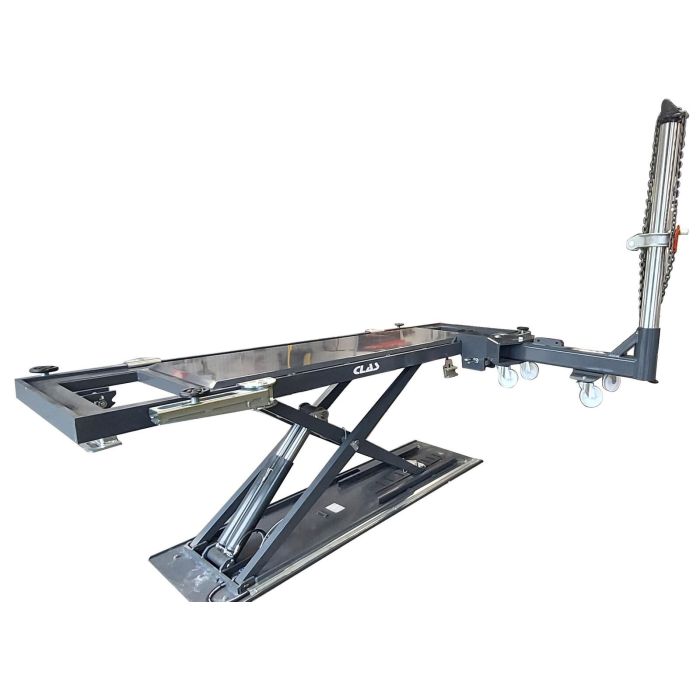

2.5T lift table with removable electro-hydraulic 2.5T straightening bracket
Price upon request
This product is no longer listed with us
Characteristics
| Item name | STRAIGHTENING BENCH 3M |
|---|---|
| Bar code | 3701555307534 |
| Introduction | 2.5T lift table with removable electro-hydraulic 2.5T straightening bracket |
| Text |
This table enables a vehicle to be lifted up to 160cm to perform work mainly dedicated to body preparation and impact straightening. Its 2-in-1 control panel enables you to remotely control : - raising and lowering of the table - raising and lowering of the electrohydraulic bracket via remote control Operating mode : Step 1 Raise the vehicle using the 4 telescopic arms fitted with height-adjustable buffers. Step 2 Mount the arms fitted with height-adjustable clamps on the table Step 3 Lock the claws to the chassis by turning the 17mm drive screw. Step 4 Lower the table onto the 2 front and rear feet and hook the bracket. Step 5 Raise the vehicle to working height and operate the traction points |
| Product highlight | Quick vehicle set-up |
| Specifications |
Specifications : Table : - capacity: 2500kg - min. height 80mm - max. height 1600mm - length: 3000mm - width: 780mm - power: 1.8kW - power supply: tri 400V Angle bracket : - power: 2500kg - 350mm cylinder extension - supplied with 3000mm chain |
| Contents |
Contents : - lifting table with 4 arms and removable pads for lifting the vehicle - straightening bracket with chain and 3m flexible hose - 4 removable arms for attachment of 4 holding vices |
| Warranty period | 2 years |
| Vehicle type | LV |
| Power | 1800W |
| Voltage | 400V |
| Min. height | 80 mm |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | INTERVENTION |
| Customer benefit |
No built-in installation required thanks to low 8cm floor height No need for accessory lever-handle Pneumatically-operated rack-and-pinion safety device |
