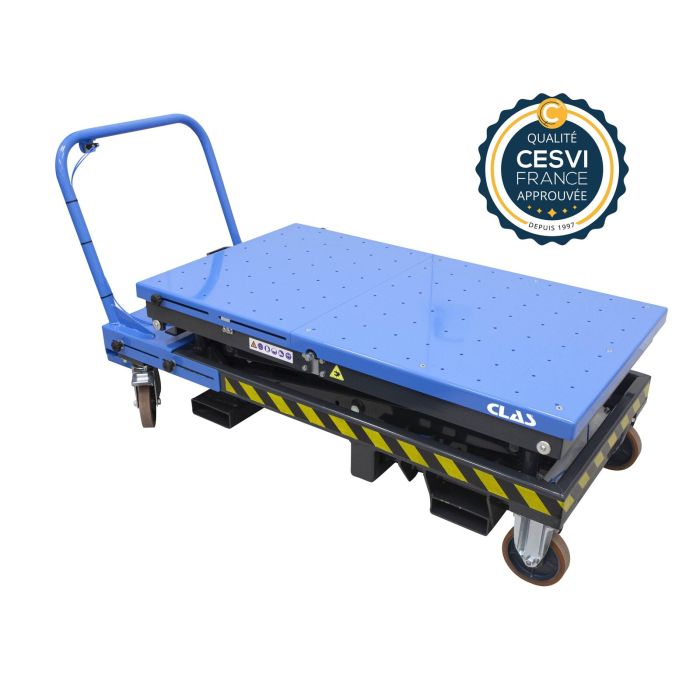

LIFTING TABLE 1500kg FOR EV BATTERY AND HEAVY ORGANS
SKU
OH 1500
Product values
View all features
This table is specially designed for the removal and re-installation of heavy components with a maximum load not exceeding 1.5T, such as an electric vehicle battery or powertrain. Versatile, it will adapt to all your needs thanks to its numerous settings and optional supports on request. With its robust design, it has been conceived to meet the needs of intensive use.
Price upon request
This product is no longer listed with us
Characteristics
| Item name | LIFTING TABLE 1500kg FOR EV BATTERY AND HEAVY ORGANS |
|---|---|
| Bar code | 3701555300535 |
| Introduction | This table is specially designed for the removal and re-installation of heavy components with a maximum load not exceeding 1.5T, such as an electric vehicle battery or powertrain. Versatile, it will adapt to all your needs thanks to its numerous settings and optional supports on request. With its robust design, it has been conceived to meet the needs of intensive use. |
| Text |
A hydropneumatic control system provides effortless, fast and precise height adjustment. Pneumatically-operated side racks ensure safety. The tray unfolds to a maximum surface area of 1440-1640mmx800mm, and is tapped M10x1.5 to accommodate various accessories for component removal. Using 2 screws driven by a 17mm hexagon, it is possible to adjust the flatness of the table by +/- 5%, and laterally by +/- 3.5cm, for high positioning accuracy. The table's telescopic frame, which extends from 1650mm to 1850mm, accommodates very large batteries. 2 lateral recesses under the frame, 170mm wide and 750mm apart, enable the table to be transported using a forklift truck. |
| Product highlight |
High load capacity 1500Kg High positioning accuracy |
| Specifications |
Specifications : - min. h.: 580mm - max. height: 1800mm - max. h. on safety catches: 1740mm - rise time: 70-110 sec (example: 73 seconds with 457 kg load) - lowering time: +- 30 sec (example: 34 seconds with 457kg load) - platform length: 1400-1600mm - platform width: 800mm - overall length of telescopic chassis from 1650mm to 1850mm - equipped with dual-material Aluminum, Polyurethane wheels: 2 fixed and 2 swivel with brakes - PU wheels - max hydraulic pressure: 190bar - pneumatic supply: 6-8bar - weight: 505kg |
| Warranty period | 2 years |
| Length (mm) | 1,850 mm |
| Width | 800 mm |
| Height | 580 mm |
| Product weight (kg) | 505 kg |
| Max. height | 1,800 mm |
| Min. height | 580 mm |
| Maximum load (T) | 1.50 T |
| Tariff code | Tariff Equipment (TE) |
| Warranty Procedure | DIAGNOSTIC |
