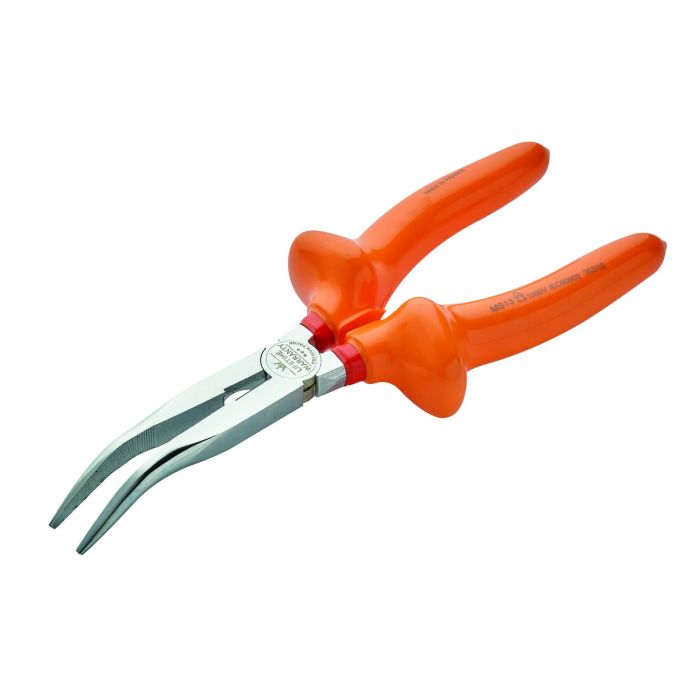

INSULATED PLIERS WITH HALF ROUND NOSE PREMIUM ELBOW
SKU
OE 0525
Product values
View all features
1000V insulated clamp.
55 €
VAT Excl.
Characteristics
| Item name | INSULATED PLIERS WITH HALF ROUND NOSE PREMIUM ELBOW |
|---|---|
| Bar code | 3700461406980 |
| Introduction | 1000V insulated clamp. |
| Text |
Allows easy bending of electrical wires. Suitable for work requiring precise gripping and cutting. Better access to work area thanks to angled jaws. Induction treatment of cutter forging for long jaw life. Insulating reinforcements at the ends of the arms to protect against shocks. Beak gripping surface with soft ridges (prevents damage to cables). Color differentiation between the 2 insulating layers enables visual inspection of the entire tool to confirm its suitability for use in electrical environments, as recommended by UTE18-510 and IEC 60900. WHEN THE ORANGE LAYER IS DAMAGED AND THE RED LAYER IS VISIBLE = DANGER. - The thickness of the insulating layers is determined by the weight of the tools to ensure optimum resistance. - Tools are designed to withstand extreme temperatures from -20 to +70°C. - Each tool is tested to 10,000V AC and approved to 1000V AC for use on low-voltage networks. - Several checks at every stage of production, in addition to IEC 60900 standard checks. |
| Product highlight |
Safety: wear indicator Lifetime warranty |
| Specifications |
Specifications : - standard: NF EN 60900 / CEI 60900 / NF ISO 5743 / NF ISO 5744 / NF ISO 5745 - cutting edge hardness: 60HRC - cutting edge: axial cut - inside jaws: grooved - tips: half-round, 45° angled - cutting capacity: medium-hard steel wire 160 kg/mm²: 1.6mm - high-performance steel: chrome vanadium |
| Warranty period | lifetime |
| Voltage | 1000V |
| Length (mm) | 205 mm |
| Product weight (kg) | 200 kg |
| Tariff code | Tariff Normal (TN) |
| Warranty Procedure | EASY |
