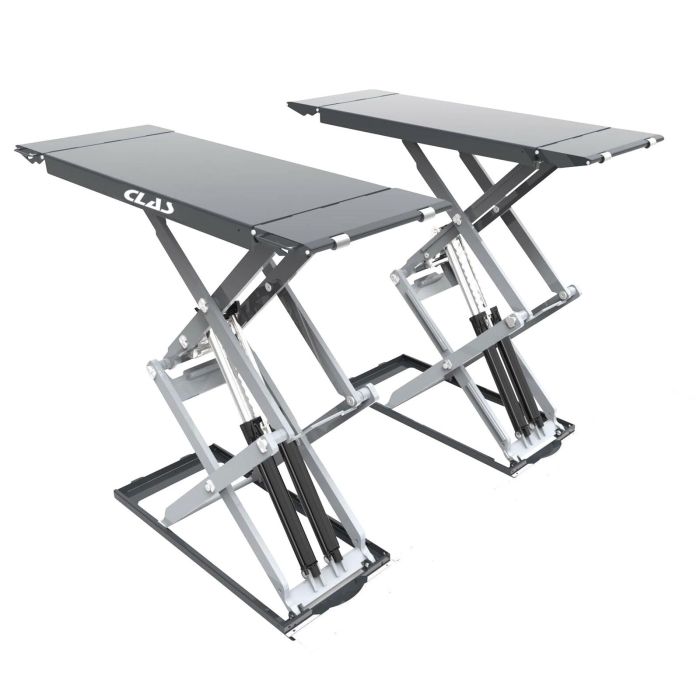

DOUBLE SCISSOR LIFT DUAL CYLINDER 400V 3T
SKU
PE 6001T
Product values
View all features
Particularly suited to paint, bodywork, brake and tire service activities.
Choice of installation: free-standing or built-in.
This product is no longer listed with us
This product is no longer listed with us
This product is replaced with :
PE 6236T - DOUBLE SCISSOR LIFT 400V 3.6T LOW PROFILE ON/IN-GROUND
Characteristics
| Item name | DOUBLE SCISSOR LIFT DUAL CYLINDER 400V 3T |
|---|---|
| Bar code | 3701555307138 |
| Introduction |
Particularly suited to paint, bodywork, brake and tire service activities. Choice of installation: free-standing or built-in. |
| Text |
Easy access: 100mm lowered floor passage, lockable access ramps to extend platforms. Up/down control via push-buttons on control console. Full power lift at lowest point 100mm. Work comfort: scissor control by double hydraulic master-slave system; synchronization control by photocell. |
| Specifications |
Specifications : - lifting height: 100-1950mm - lifting time: +/- 40s - lowering time: +/- 35s - track width/length: 710/1733-2090mm - system synchronization: photo cell - floor width/length required for installation: 2090/2160mm - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - maximum safety: double hydraulic safety system (without mechanical detent or compressed air), emergency lowering system in the event of power failure, CE-standard anti-crushing intermediate stop and audible signal - made in Europe |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Voltage | 400V |
| Product weight (kg) | 840 kg |
| Maximum load (T) | 3 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6001T-1 - DOUBLE SCISSOR LIFT DUAL CYLINDER 400V 3T PACK. 1/2 1 x PE 6001T-2 - DOUBLE SCISSOR LIFT DUAL CYLINDER 400V 3T PACK. 2/2 |
